Quick Start

This guide introduces the FoBE Core nRF52840 Mesh and how to use it for LoRa/LoRaWAN applications.

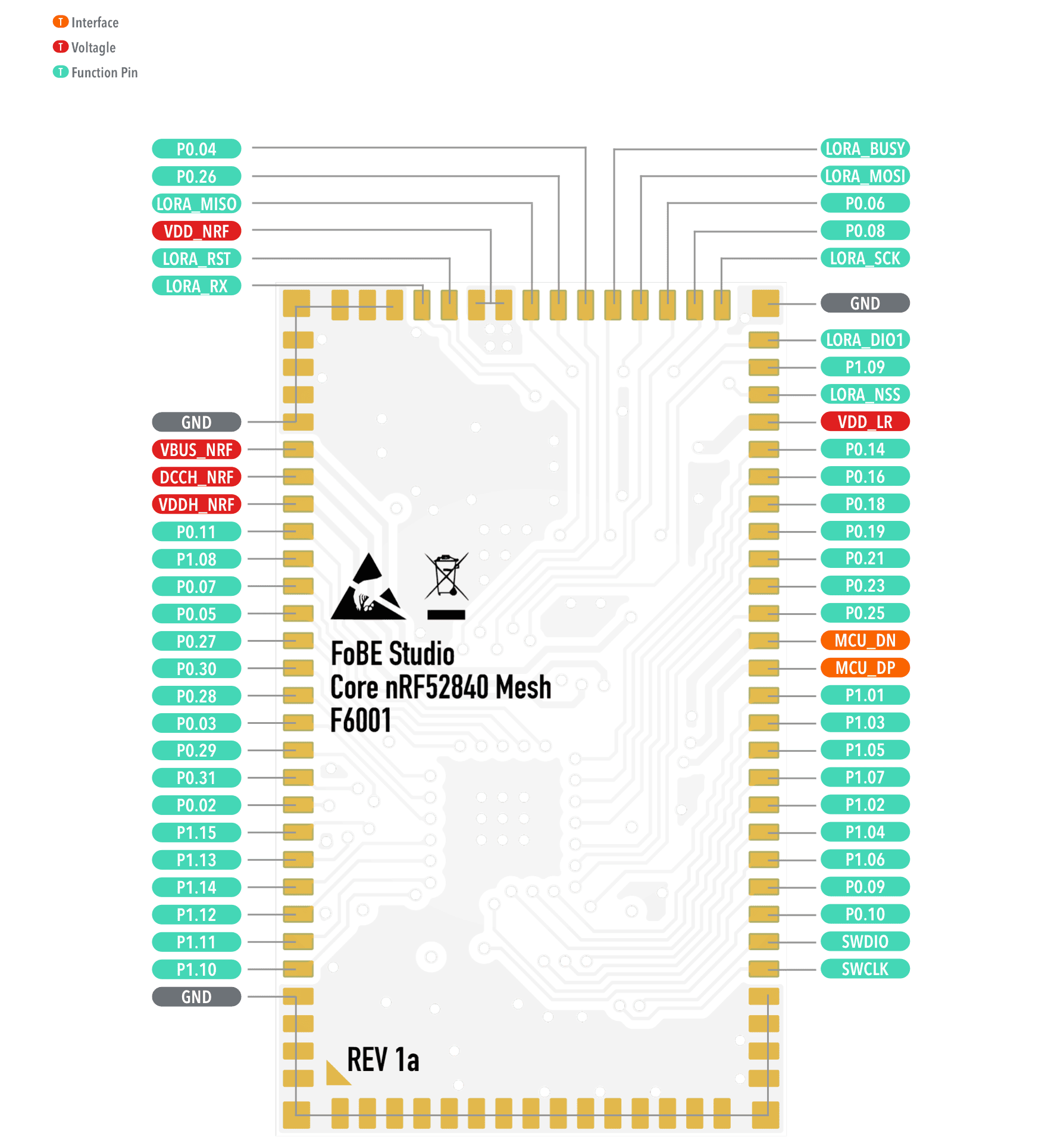

Hardware diagram​

The following figure illustrates the FoBE Core nRF52840 Mesh hardware diagram.


FoBE Core nRF52840 Mesh Hardware Diagram

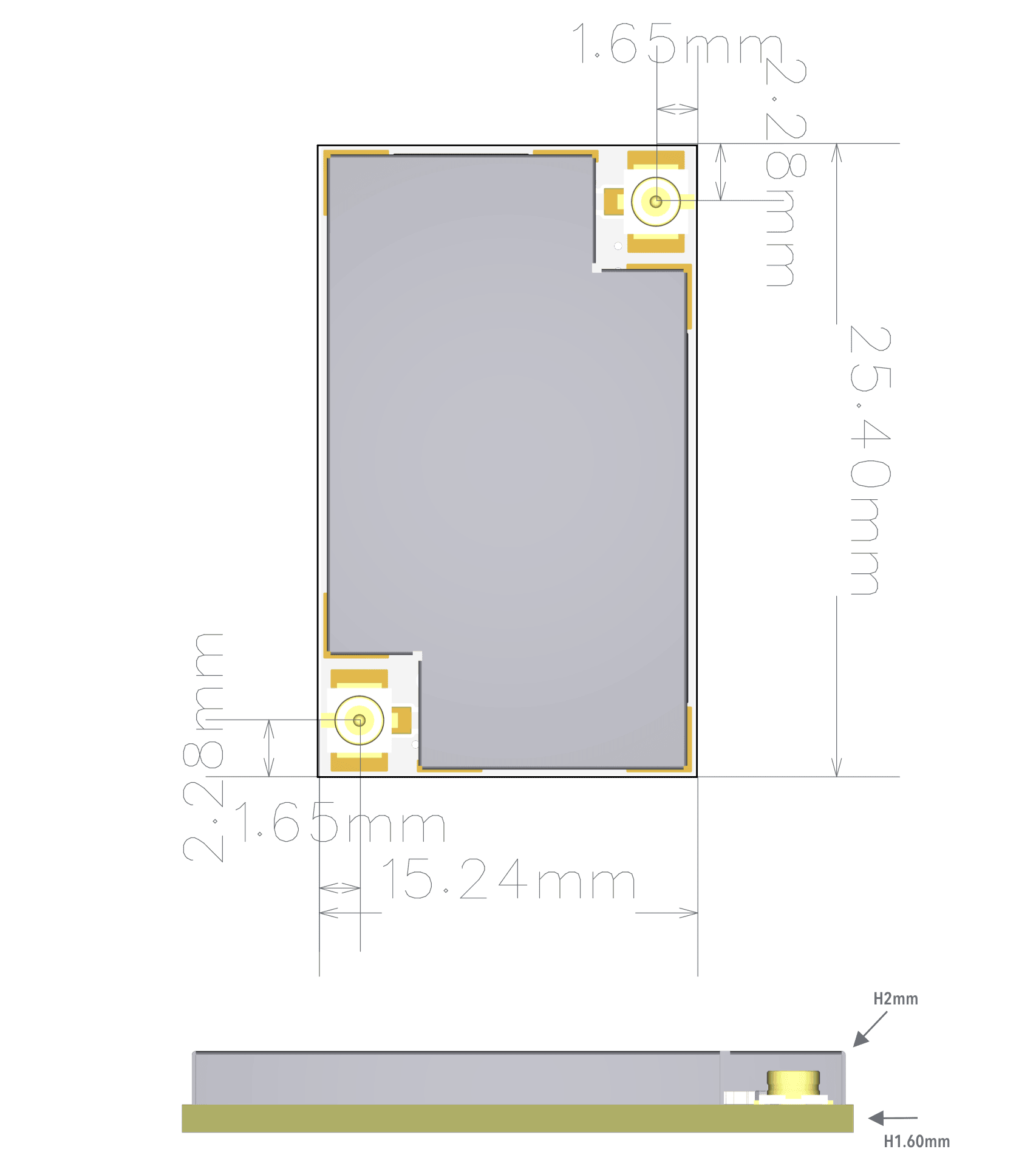

Mechanical dimensions​

FoBE Core nRF52840 Mesh is a single-sided 15.24mm x 25.4mm 1.6mm thick PCB with 90 pads (including GND).


FoBE Core nRF52840 Mesh Mechanical Dimensions

Pinout​

All nRF52840 pins are available as 90 pads (including GND) on the module. Please refer to the nRF52840 datasheet for detailed pin descriptions and functionalities.

Programming​

Development Environment Setup​

To start developing applications for the FoBE Core nRF52840 Mesh, you'll need to set up a development environment. Here are the recommended steps:

  1. Install the Arduino IDE: Download and install the latest version of the Arduino IDE from the official Arduino website.
  2. Install the Board Support Package (BSP): Add the necessary board support package for the nRF52840 to the Arduino IDE. This will allow you to compile and upload code to the module.
  3. Install LoRaWAN library: You can use the MCCI LoRaWAN LMIC library to develop LoRaWAN applications.

Example Code​

Here's a simple example of sending a LoRaWAN message using the FoBE Core nRF52840 Mesh:

// filepath: example.cpp
#include <lmic.h>
#include <SPI.h>

Note: This is a basic example and may require adjustments based on your specific LoRaWAN network and configuration.
