FoBE Breakout MFP-HUB

An interface converter from MFP to dual IIC.​

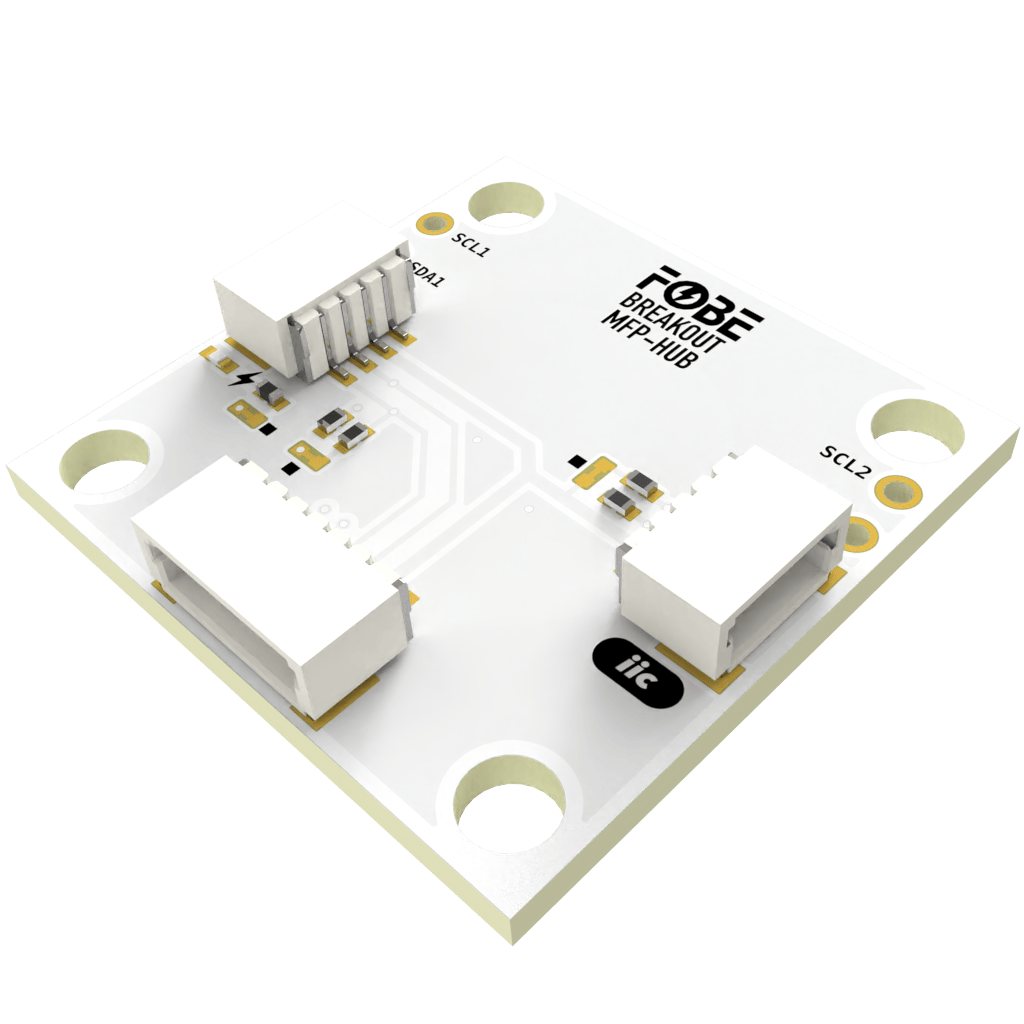

FoBE Breakout MFP-HUB Main

Introduction​

The FoBE Breakout MFP-HUB is an interface converter that splits a 6-pin MFP (Multi-Function Port) into two 4-pin I²C interfaces. This allows for connecting multiple I²C devices to a single MFP port, simplifying wiring and expanding connectivity options.

Key Features​

  • Interface Conversion: Converts one 6-pin MFP interface to two 4-pin I²C interfaces.
  • Flexible Connectivity: Provides one 6-pin JST SH1.0 connector for MFP input and two 4-pin JST SH1.0 connectors for I²C output.
  • On-board Pull-ups: Each I²C port is equipped with pull-up resistors, which can be individually disconnected via jumpers.
  • Power Indicator: An on-board power LED indicates the board's status, which can be disabled for low-power applications.

Packing List​

PartQuantity
FoBE Breakout MFP-HUB board1
JST SH1.0 6-Pin MFP Cable1
JST SH1.0 4-Pin IIC Cable2
