FoBE Breakout CMSIS-DAP Lite

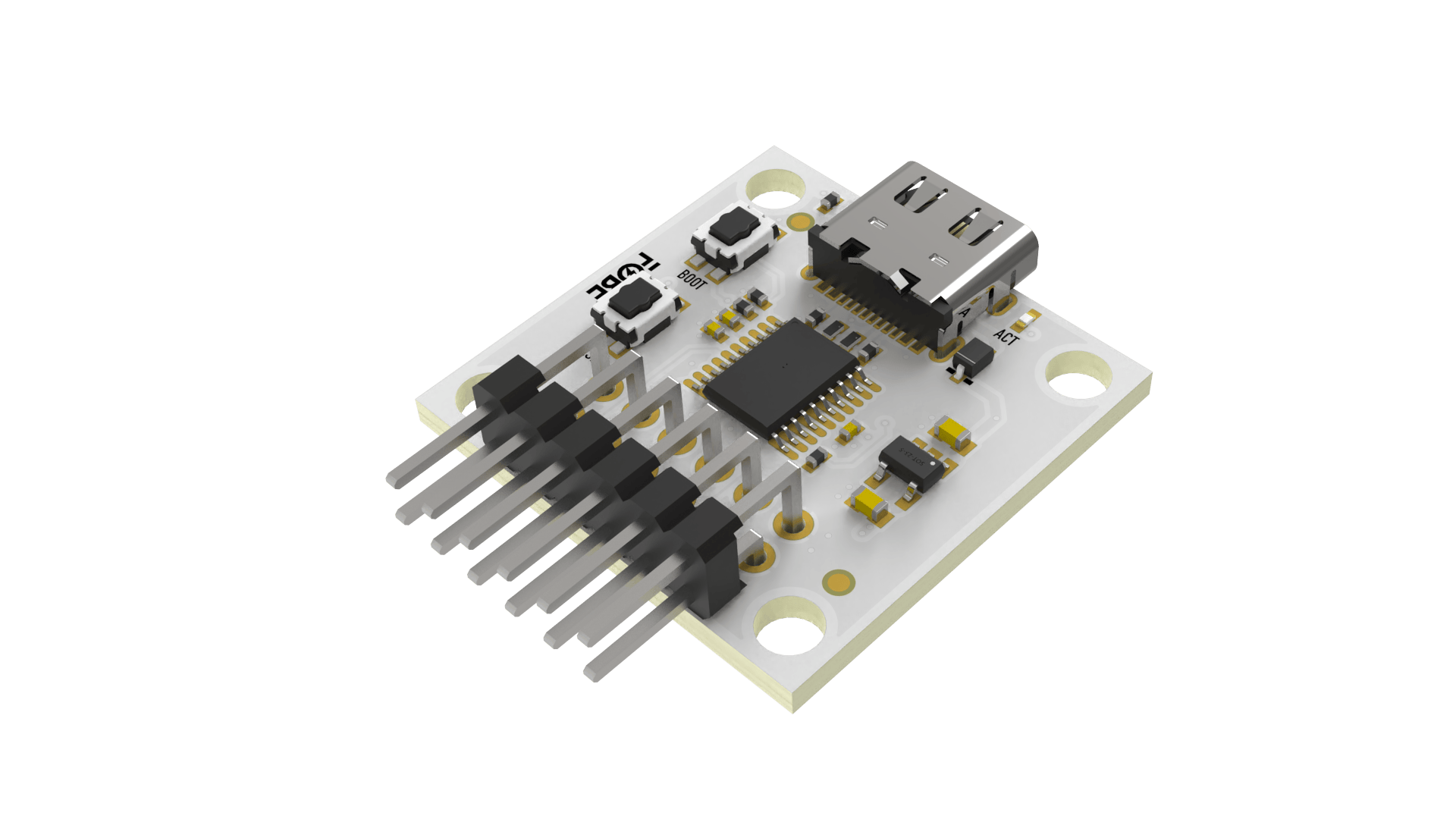

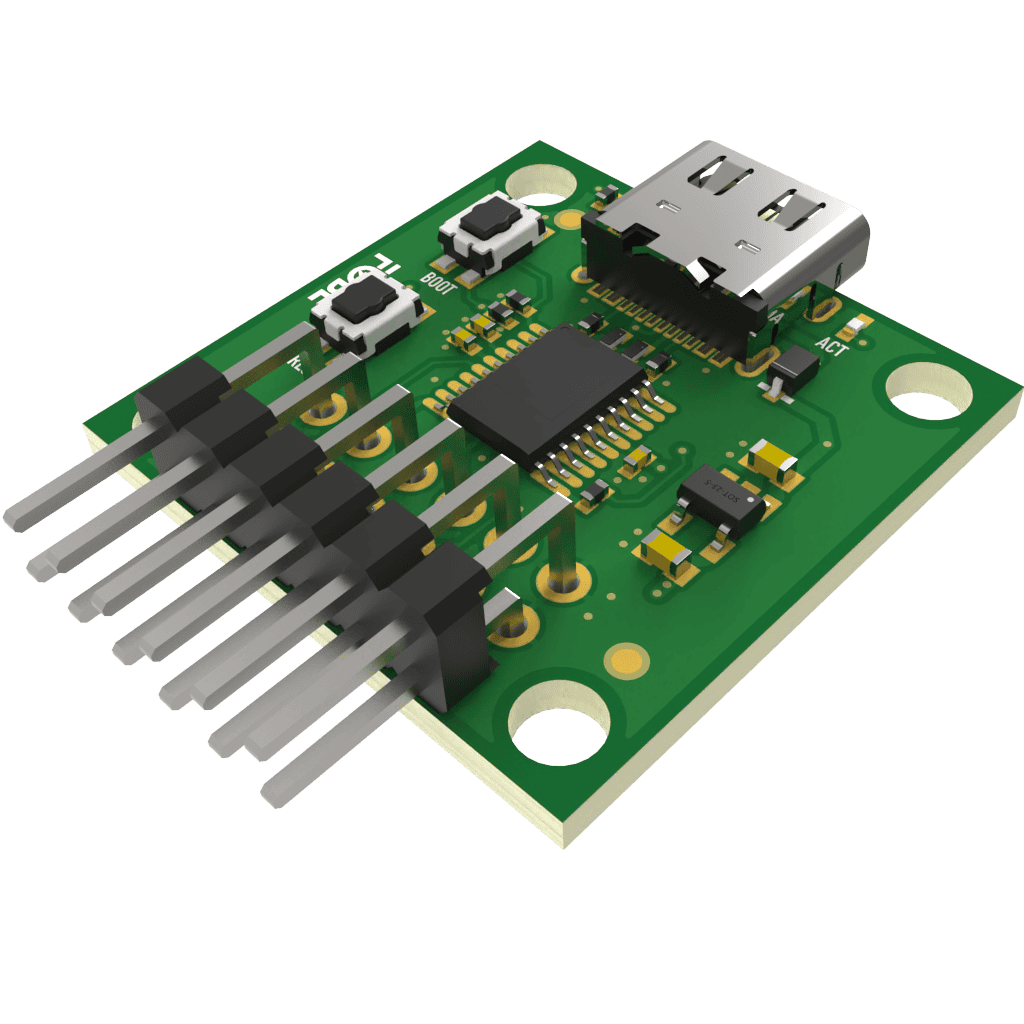

FoBE Breakout CMSIS-DAP Lite Main


Introduction​

The FoBE Breakout CMSIS-DAP Lite integrates the WCH CH32V203F6P6 microcontroller running CMSIS-DAP firmware, providing a professional debugging and programming solution for ARM Cortex-M based microcontrollers. The module supports JTAG, SWD debugging interfaces, virtual serial port communication, and offers both 3.3V and 5V power output capabilities for target board supply.

Applications​

  • ARM Cortex-M microcontroller debugging and programming
  • STM32, nRF51/52, and other Cortex-M development
  • Educational and prototyping projects
  • Firmware development and testing
  • Hardware-in-the-loop testing systems

Key Features​

CMSIS-DAP Interface

  • Compatible with all ARM Cortex-M based microcontrollers
  • Support for STM32, nRF51/52, and other Cortex-M series
  • JTAG and SWD debugging interfaces
  • Virtual serial port communication
  • Drag-and-drop programming support
  • STLINK compatible and upgradeable firmware

Development Environment Support

  • Keil/MDK development environment
  • IAR Embedded Workbench
  • OpenOCD open-source debugging tool
  • ARM Mbed online compiler

Power Supply

  • USB-C power input: 5V
  • Dual voltage output: 3.3V and 5V
  • Direct target board power supply capability
  • Power output protection circuits

Connectivity

  • 12-Pin 2.54mm Header Interface
  • USB-C connector for host communication
  • Status LED indicators

Packing List​

PartQuantity
FoBE Breakout CMSIS-DAP Lite board1
USB C to USB C Cable1
