FoBE Breakout GP8403

I2C 0-5V/0-10V two channel DAC Module.​

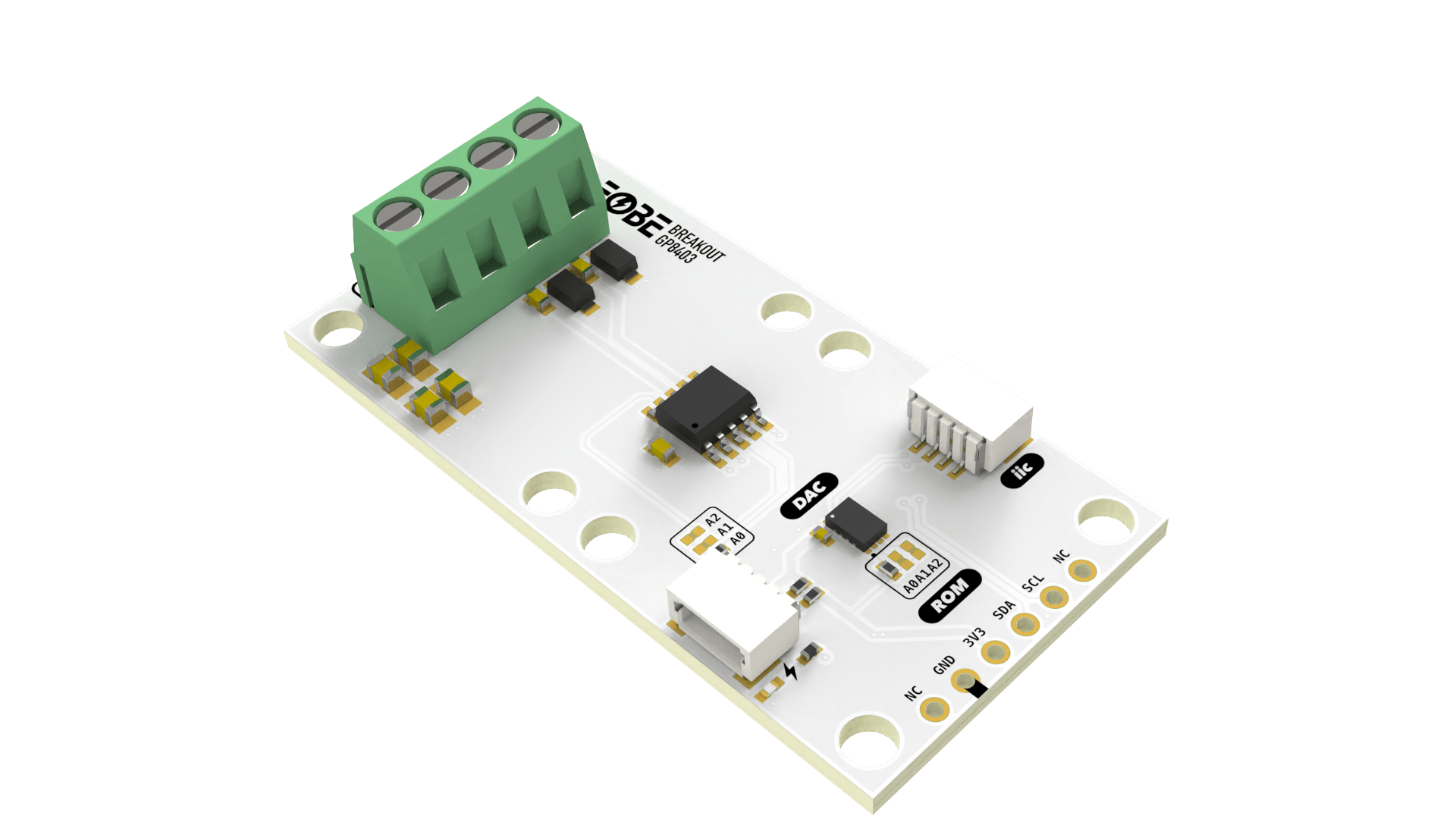

FoBE Breakout GP8403 Main


Introduction​

The FoBE Breakout GP8403 integrates the Linearin GP8403 I2C to dual-channel voltage DAC converter and the ST M24C64 EEPROM for calibration data storage. The module converts 12-bit digital values (0x000-0xFFF) to precise 0-5V or 0-10V analog voltage output with excellent linearity and accuracy. Multiple connectivity options are provided for easy integration into various applications.

Applications​

  • General signal conversion and conditioning
  • Motor speed regulation and LED dimming control
  • Inverter and power supply control systems
  • Industrial analog signal isolation and processing

Key Features​

GP8403

  • Dual-channel 12-bit DAC resolution (0x000-0xFFF input range)
  • Selectable output ranges: 0-5V or 0-10V per channel
  • Excellent output voltage accuracy: < 0.5% (0.1% with calibration)
  • Outstanding voltage linearity: 0.1%
  • Output short circuit protection with automatic recovery
  • I²C interface with programmable address
  • Input I²C signal high level: 2.7V to 5.5V
  • Power supply voltage: 9V to 36V
  • Low power consumption: < 5mA
  • Fast startup time: < 2ms
  • Wide operating temperature: -40°C to +85°C

M24C64 EEPROM

  • 64Kbit (8KB) data storage capacity
  • 32-byte page size for efficient writing
  • Write protection for entire memory array
  • Enhanced ESD/Latch-Up protection
  • More than 4 million write cycles endurance
  • More than 200-years data retention

Connectivity

  • Dual 4-Pin JST SH1.0 Connectors (IIC)
  • 6-Pin 2.54mm Header Holes
  • 4 x 3.81mm Screw Terminal Block (Power + Dual Output)

Packing List​

PartQuantity
FoBE Breakout GP8403 board1
JST SH1.0 4-Pin IIC Cable2
