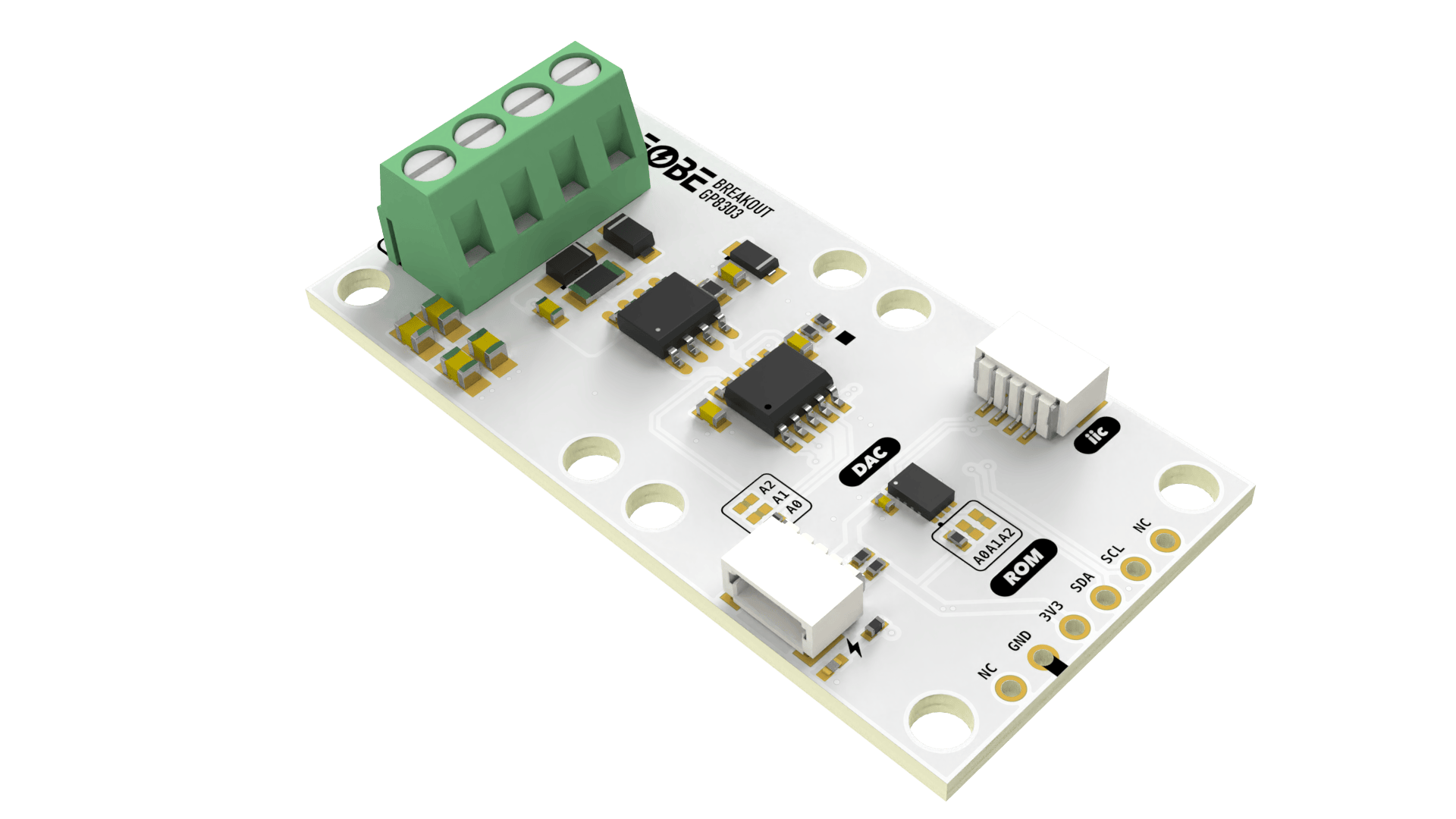

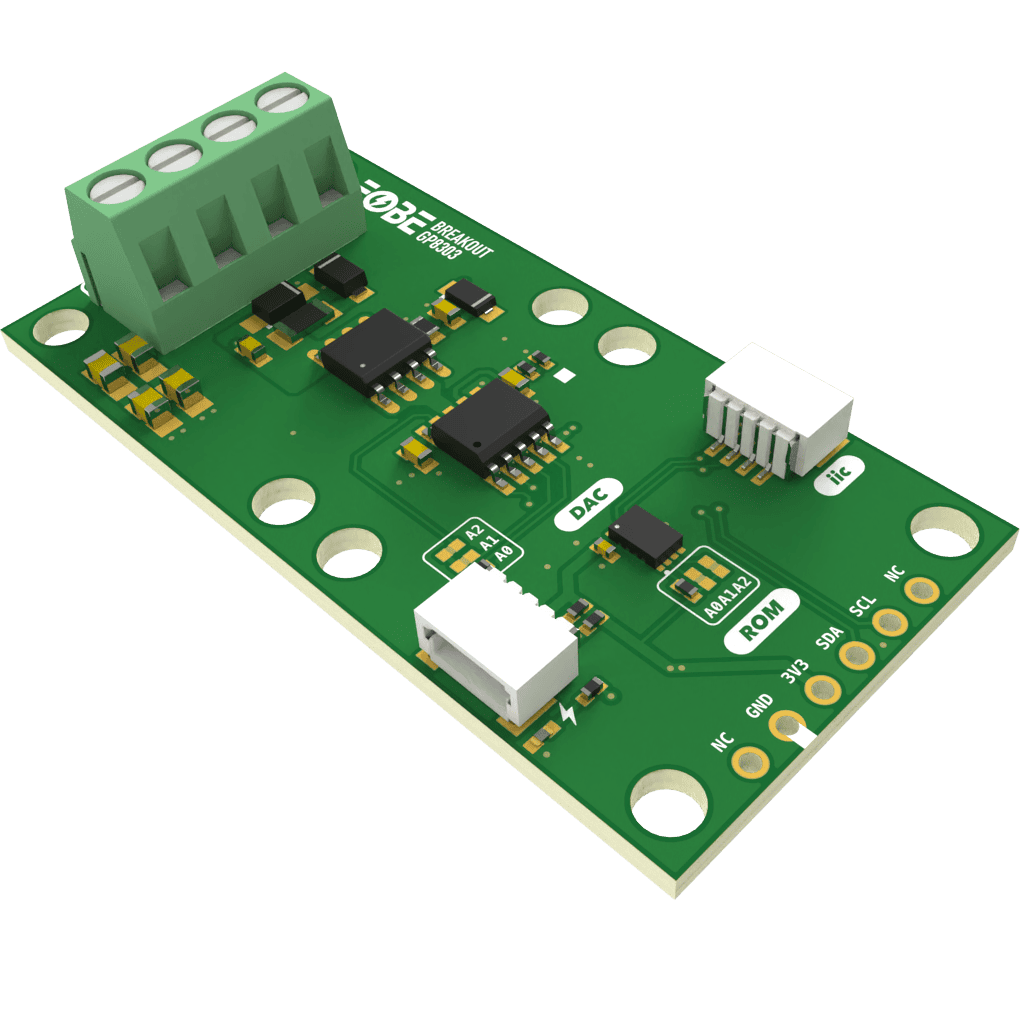

FoBE Breakout GP8303

I2C 4-20mA/0-20mA DAC Module.

Introduction

The FoBE Breakout GP8303 integrates the Linearin GP8303 I2C to 4-20mA DAC converter and the EEPROM for calibration data storage. The module converts 12-bit digital values (0x000-0xFFF) to precise 4-20mA analog current output with excellent linearity of 0.1%. Multiple connectivity options are provided for easy integration into various applications.

Applications

• Function signal generators and test equipment
• Automatic controllers for lighting and fountain systems
• Industrial automation and process control
• Electromechanical equipment debugging and calibration
• Small-scale testing and measurement devices

Key Features

GP8303

• 12-bit DAC resolution (0x000-0xFFF input range)
• 4-20mA analog current output
• Excellent output current linearity: 0.1%
• Output open circuit alarm function
• 3-bit I²C hardware address configuration
• Power supply voltage: 18V to 36V
• Low power consumption: < 5mA
• Fast startup time: < 2ms
• Wide operating temperature: -40°C to +85°C

M24C64 EEPROM

• 64Kbit (8KB) data storage capacity
• 32-byte page size for efficient writing
• Write protection for entire memory array
• Enhanced ESD/Latch-Up protection
• More than 4 million write cycles endurance
• More than 200-years data retention

Connectivity

• Dual 4-Pin JST SH1.0 Connectors (IIC)
• 6-Pin 2.54mm Header Holes
• 4 x 3.81mm Screw Terminal Block (Output)

Packing List

Part	Quantity
FoBE Breakout GP8303 board	1
JST SH1.0 4-Pin IIC Cable	2
