FoBE Breakout AS5600

A digital temperature and humidity sensor module.​

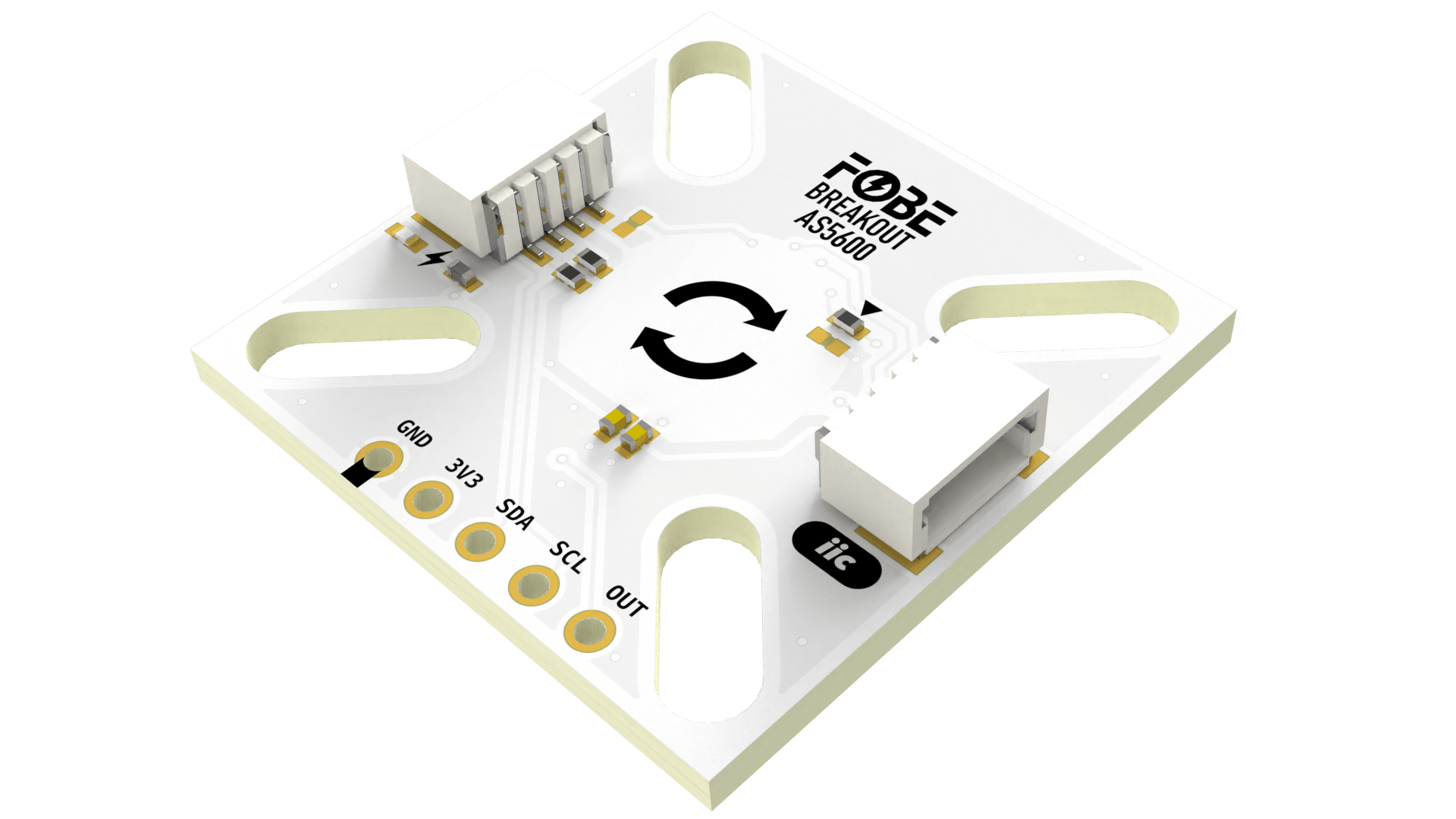

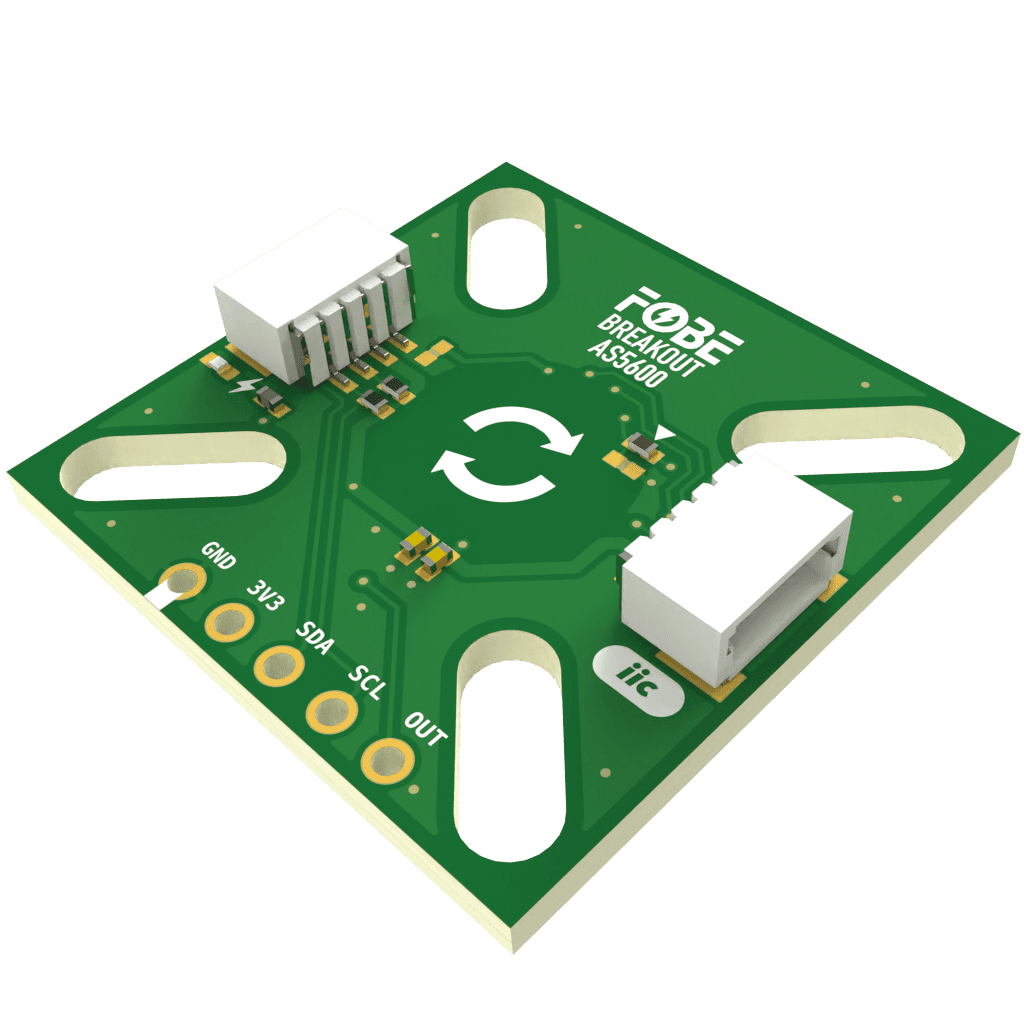

FoBE Breakout AS5600 Main

Introduction​

FoBE Breakout AS5600 is a programmable 12-bit high-resolution contactless magnetic rotary position sensor. The FoBE Breakout AS5600 can work as a magnetic potentiometer or a magnetic encoder with excellent reliability and durability.

FoBE Breakout AS5600 has advantages: high precision, non-contact, no rotation angle limitation. All those advantages making it suitable for non-contact angle measurement applications, such as the robot arm, tripod head, motor closed-loop control, machine tool axis positioning.

Applications​

  • Motor closed-loop control
  • Robot arm
  • Tripod head
  • Industrial machine control

Key Features​

  • AS5600:

    • Highest reliability and durability : Contactless angle measurement
    • Simple programming: Simple user-programmable start and stop positions over the I²C interface
    • Great flexibility on angular excursion : Maximum angle programmable from 18° up to 360°
    • High-resolution output signal : 12-bit DAC output resolution
    • Selectable output : Analog output ratiometric to VDD or PWM-encoded digital output
    • Low-power consumption : Automatic entry into low-power mode
    • Easy setup : Automatic magnet detection
    • Robust environmental tolerance :Wide temperature range: -40°C to 125°C

  • Connectivity:

    • Two 4Pin SH1.0 Connectors(IIC)
    • 5Pin 2.54mm Header Holes (IIC + interrupt)

Packing List​

PartQuantity
FoBE Breakout AS5600 board1
SH1.0mm 4 Pin Connector Plug Male with 100mm Wire2
