FoBE Breakout ENS160

Digital multi-gas sensor solution.​

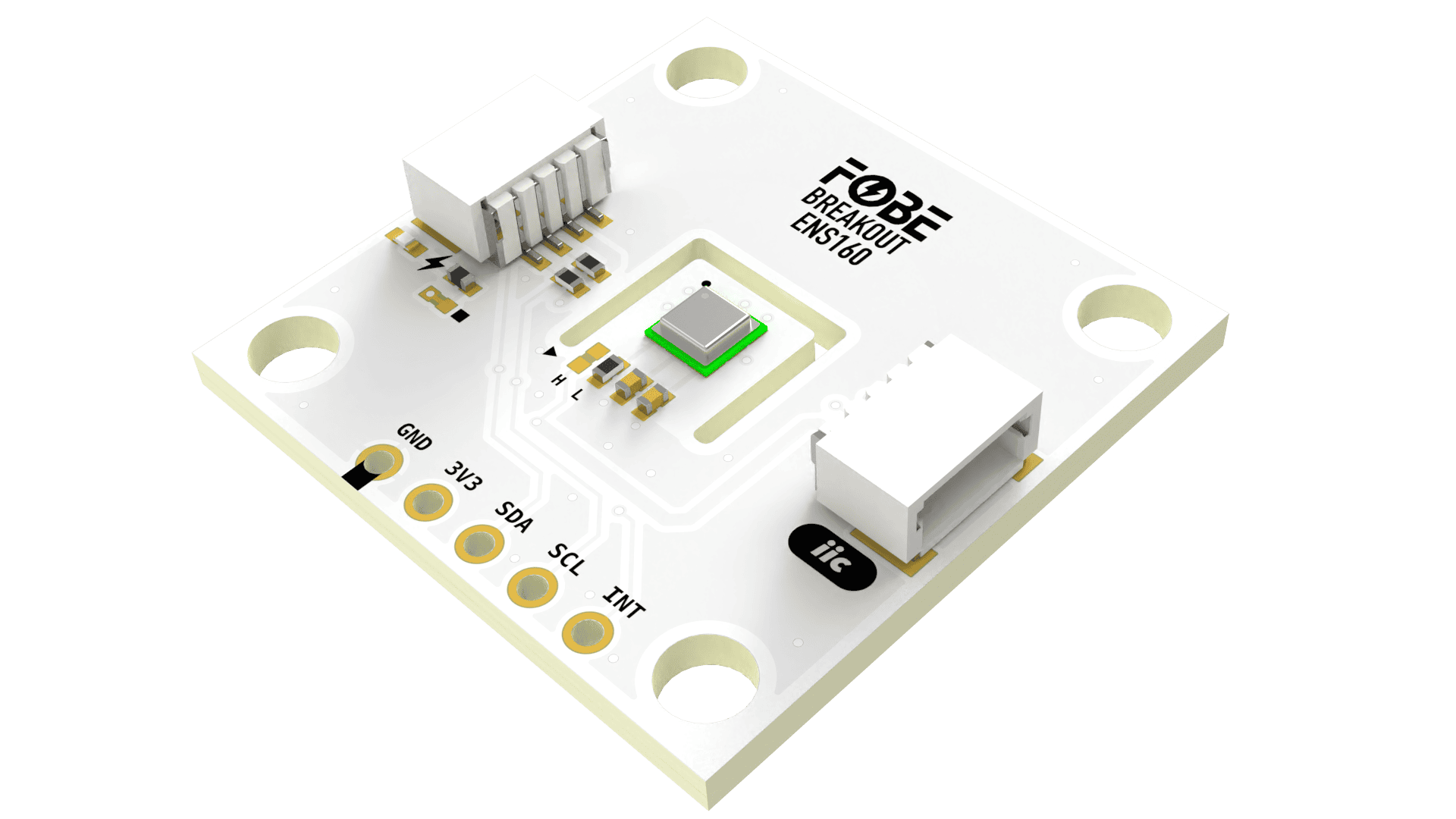

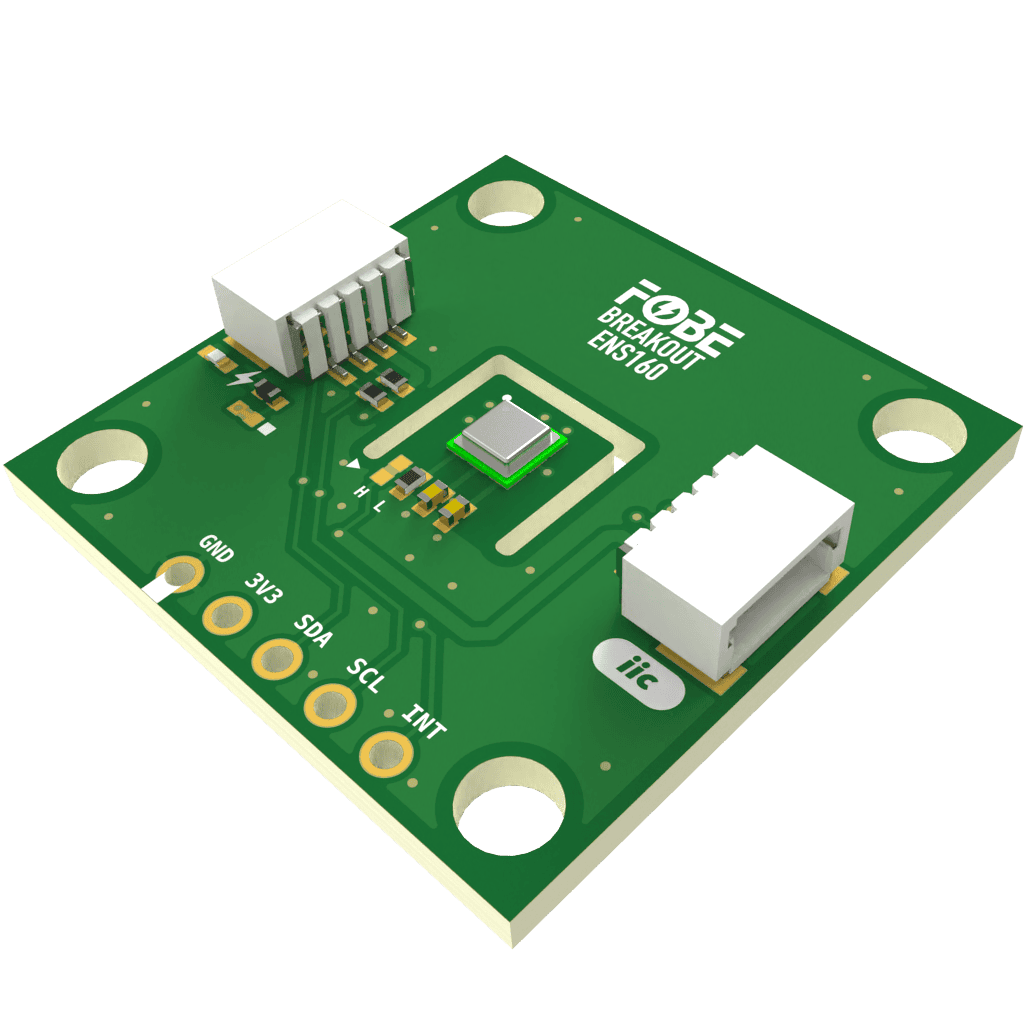

FoBE Breakout ENS160 Main

Introduction​

FoBE Breakout ENS160 based on ScioSense's ENS160 sensor chip, is specifically designed for indoor air quality monitoring and offers detection of multiple IAQ data (TVOC, eCO2, AQI).

The independent hotplate control allows the detection of a wide range of volatile organic compounds (VOCs) including ethanol, toluene, hydrogen and oxidizing gases with superior sensitivity.

With intelligent on-chip algorithms, the ENS160 can directly output rich and easy-to-understand environmental data. Preheat the sensor 3 minutes before use then you can obtain accurate data more quickly. What's more, the built-in automatic baseline correction algorithm ensures the long-term stability of the sensor.

Applications​

  • Air purification/home automation device
  • Environmental pollution detection
  • HVAC/Ventilation system
  • Building automation/smart thermostat
  • Electrical appliances/ range hoods

Key Features​

  • ENS160:

    • TrueVOC® air quality detection with industry-leading purity and stability, providing outputs such as eCO21 , TVOC and AQI2 in compliance with worldwide IAQ3 standards.

    • Independent sensor heater control for highest VOC selectivity and outstanding background discrimination.

    • Immunity to humidity and ozone

      • Superior output stability over the whole T and RH operating ranges4
      • Effective ozone compensation Hassle-free on-chip heater drive control and data processing – no need for external libraries – no impact on MCU performance.

    • Wide operating ranges

      • temperature: -40 to +85°C
      • humidity: 5 to 95%5
      • VDD: 1.71 to 1.98V; VDDIO 1.71 to 3.6V

  • Connectivity:

    • Two 4Pin SH1.0 Connectors(IIC)
    • 5Pin 2.54mm Header Holes (IIC + interrupt)

Packing List​

PartQuantity
FoBE Breakout ENS160 board1
SH1.0mm 4 Pin Connector Plug Male with 100mm Wire2
