FoBE Breakout OLED 0.42 inch

A OLED display module.​

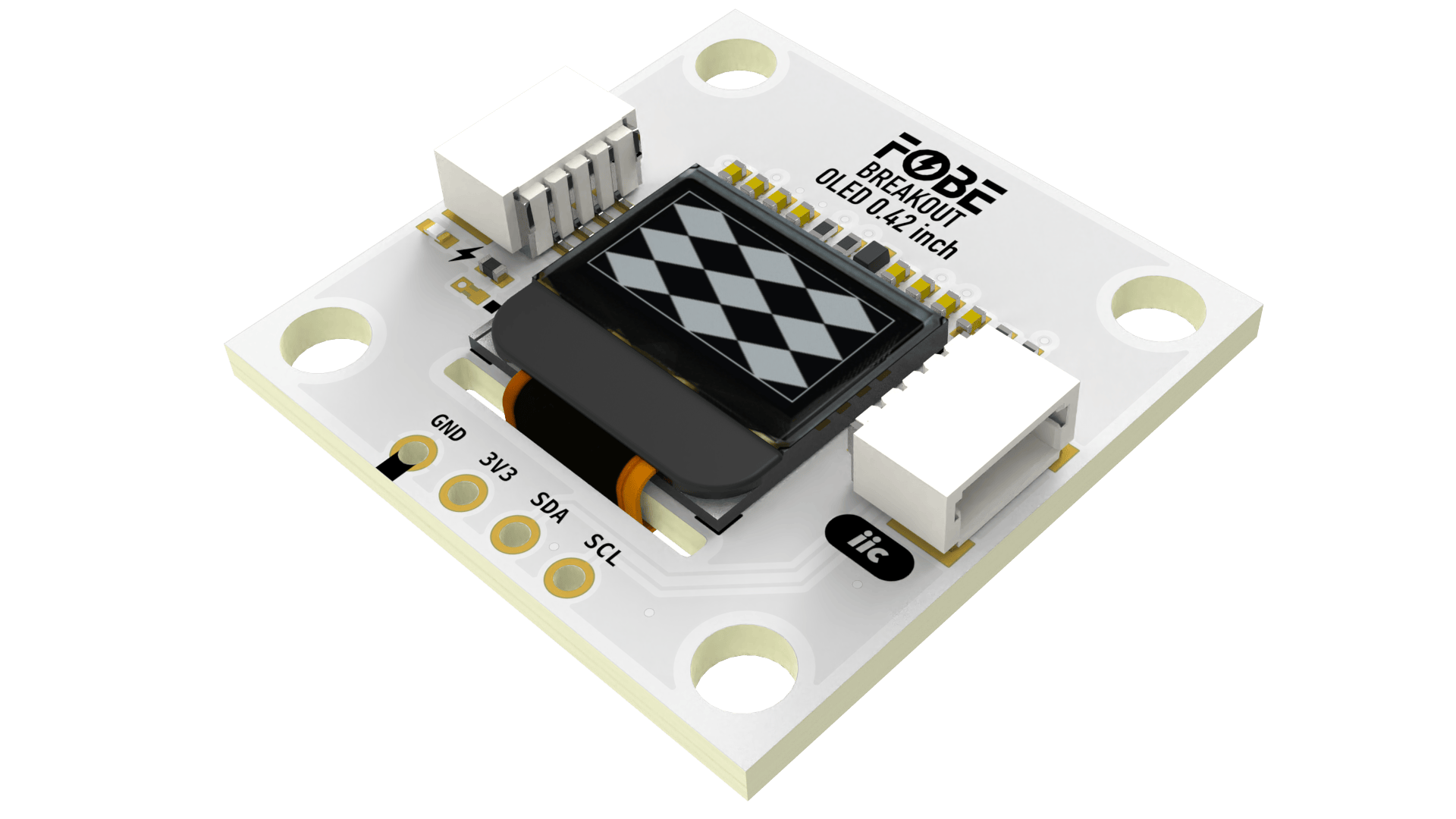

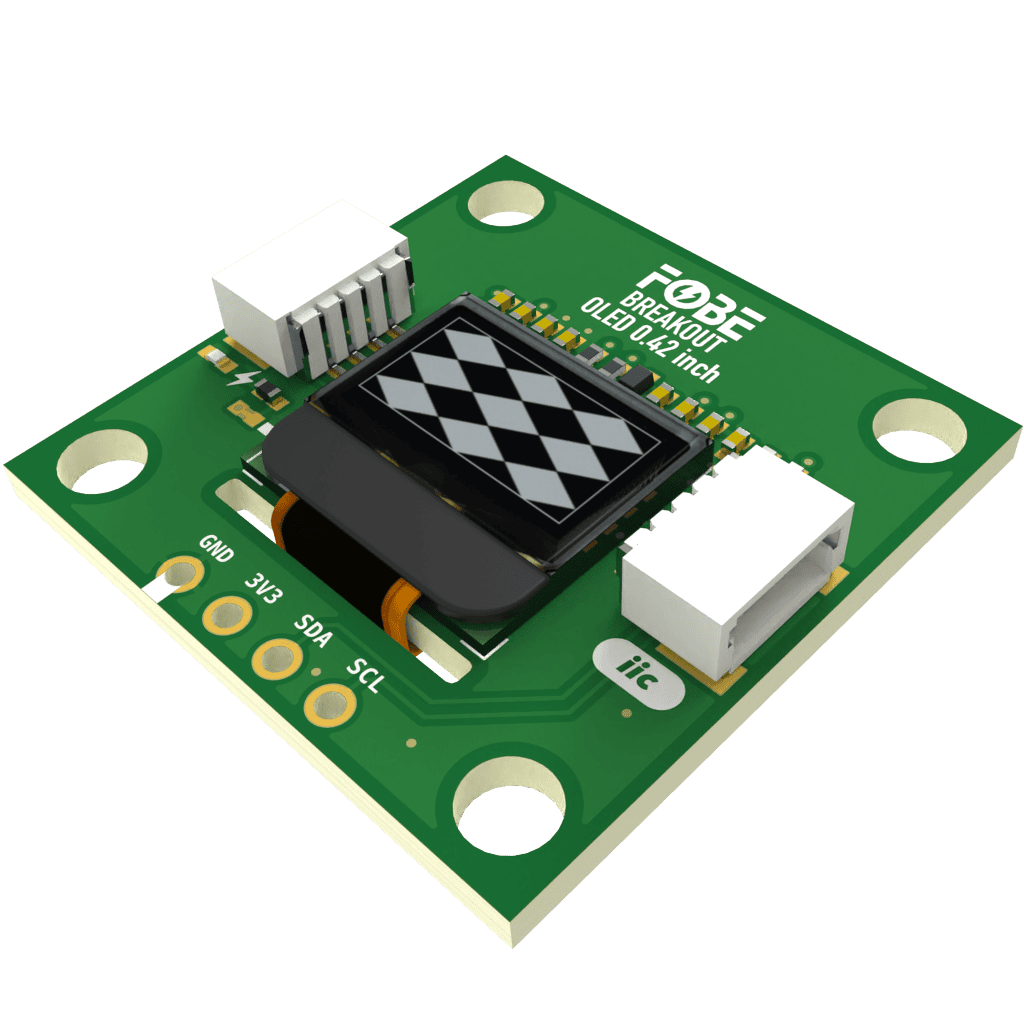

FoBE Breakout OLED 0.42 inch Main


Introduction​

The FoBE Breakout OLED 0.42 inch integrates a 0.42 inch 72x40 pixels graphic monochrome OLED display with the SSD1315 driver IC. This ultra-compact display module is perfect for low-power applications requiring visual feedback. Multiple connectivity options are provided for easy integration into various applications.

Applications​

  • Electronic Products
  • Medical apparatus and equipment
  • Traffic Safety
  • Wearable devices

Key Features​

SSD1315

  • 0.42 inch PM OLED
  • Resolution: 72x40 pixels
  • Display color: Monochrome (White)
  • Interface: 4-wire I2C
  • Operating Temperature: -40 to +85 °C
  • Low power consumption
  • High contrast ratio
  • Wide viewing angle
  • Fast response time

Connectivity

  • Dual 4-Pin JST SH1.0 Connectors (IIC)
  • 4-Pin 2.54mm Header Holes

Packing List​

PartQuantity
FoBE Breakout OLED 0.42 inch board1
JST SH1.0 4-Pin IIC Cable2
