FoBE Breakout LPS22

A MEMS nano pressure sensor module.​

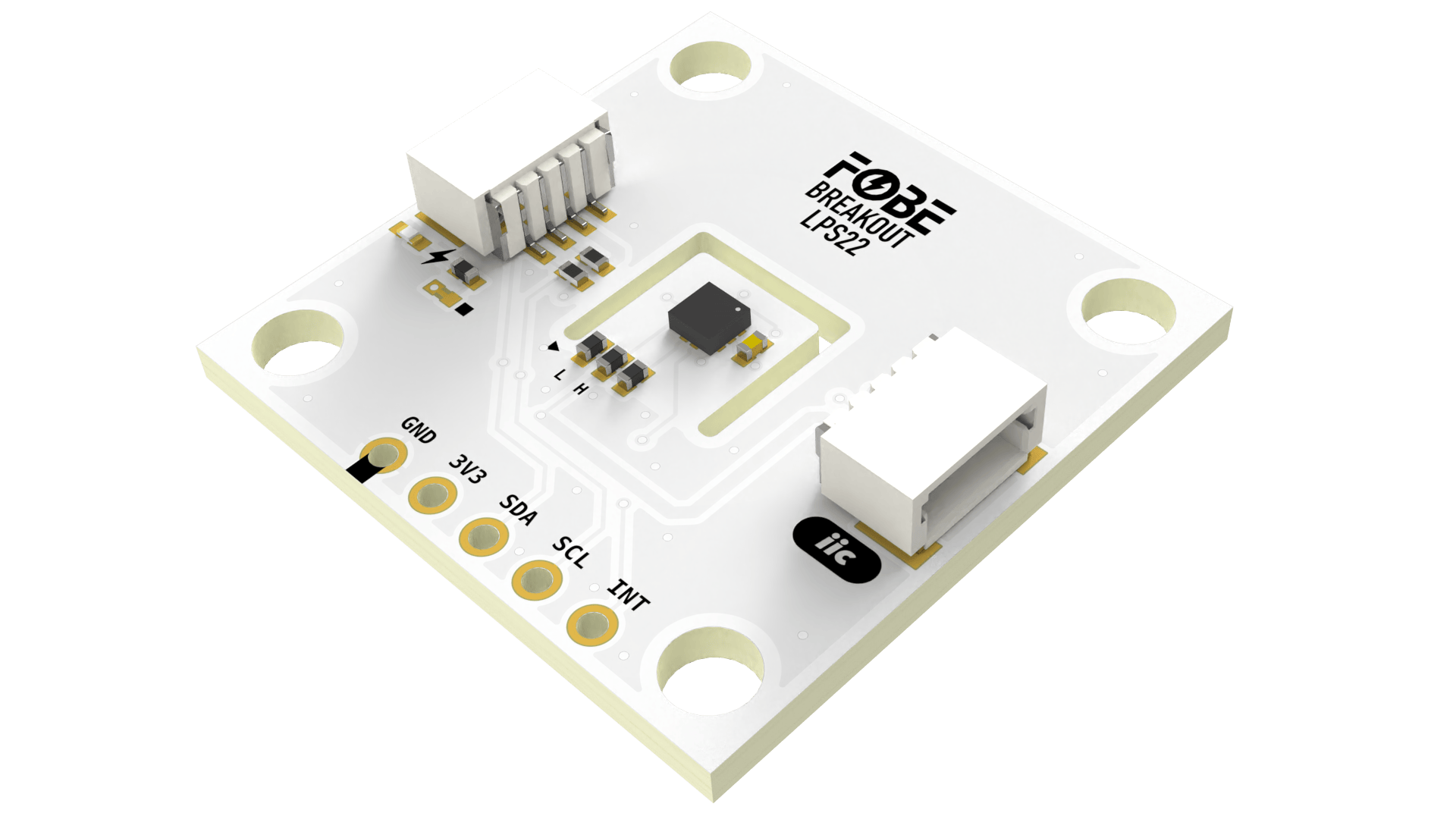

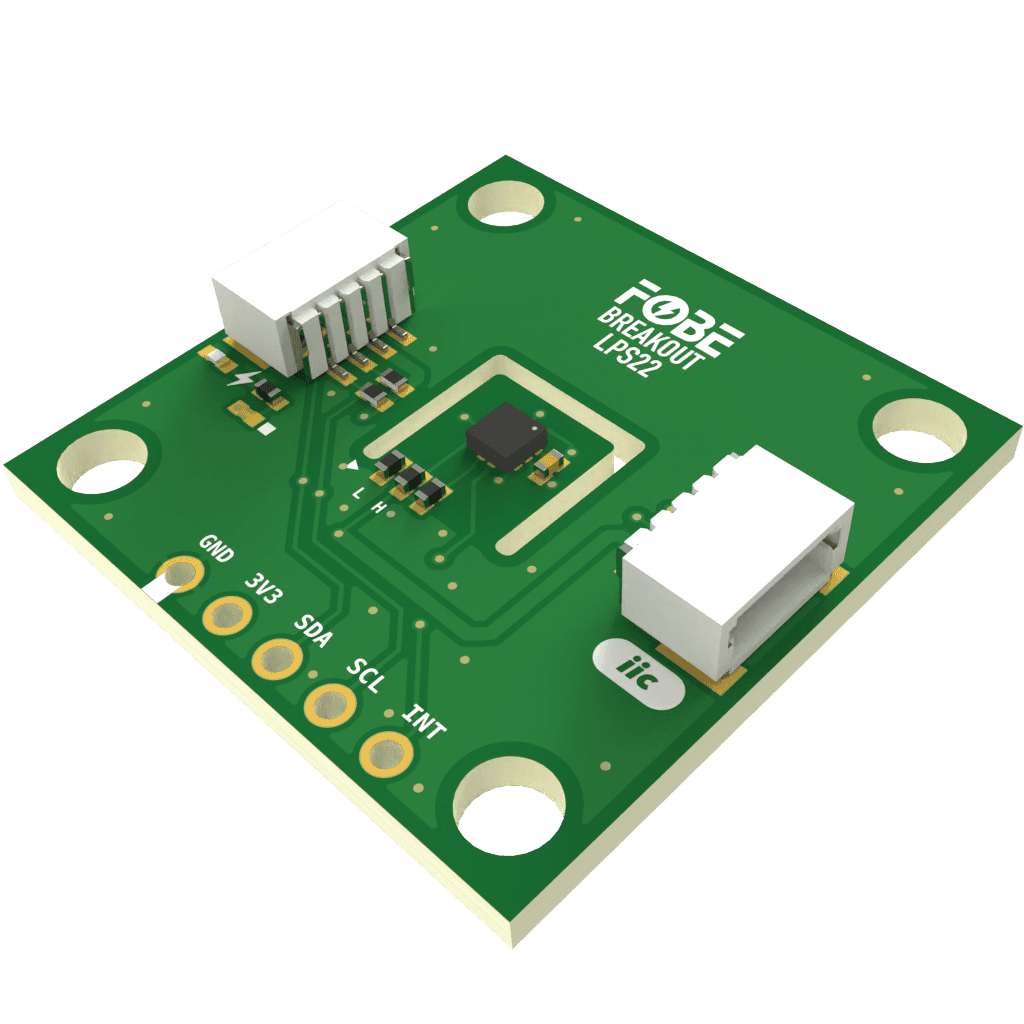

FoBE Breakout LPS22 Main

Introduction​

FoBE Breakout LPS22 enables pressure measurement in the range from 260 to 1260 hPa with an accuracy of ±0.1 hPa (after point calibration) or ±1 hPa without calibration.

The LPS22 has 24-bit resolution with a measurement frequency of 75 Hz. It also allows you to measure the temperature. It can work with systems with a working voltage of 3.3 V or 5 V, and communication is via the I2C interface.

Applications​

  • Altimeters and barometers for portable devices
  • GPS applications
  • Weather station equipment
  • Sport watches

Key Features​

  • LPS22:

    • 260 to 1260 hPa absolute pressure range
    • High overpressure capability: 20x full-scale
    • Embedded temperature compensation
    • 24-bit pressure data output
    • 16-bit temperature data output
    • ODR from 1 Hz to 75 Hz
    • I²C interfaces
    • Embedded FIFO
    • Interrupt functions: Data Ready, FIFO flags, pressure thresholds
    • High shock survivability: 22,000 g
    • Small and thin package
    • ECOPACK® lead-free compliant

  • Connectivity:

    • Two 4Pin SH1.0 Connectors(IIC)
    • 5Pin 2.54mm Header Holes (IIC + interrupt)

Packing List​

PartQuantity
FoBE Breakout LPS22 board1
SH1.0mm 4 Pin Connector Plug Male with 100mm Wire2
