FoBE IDEA Mesh Solar Power

A solar expansion board.

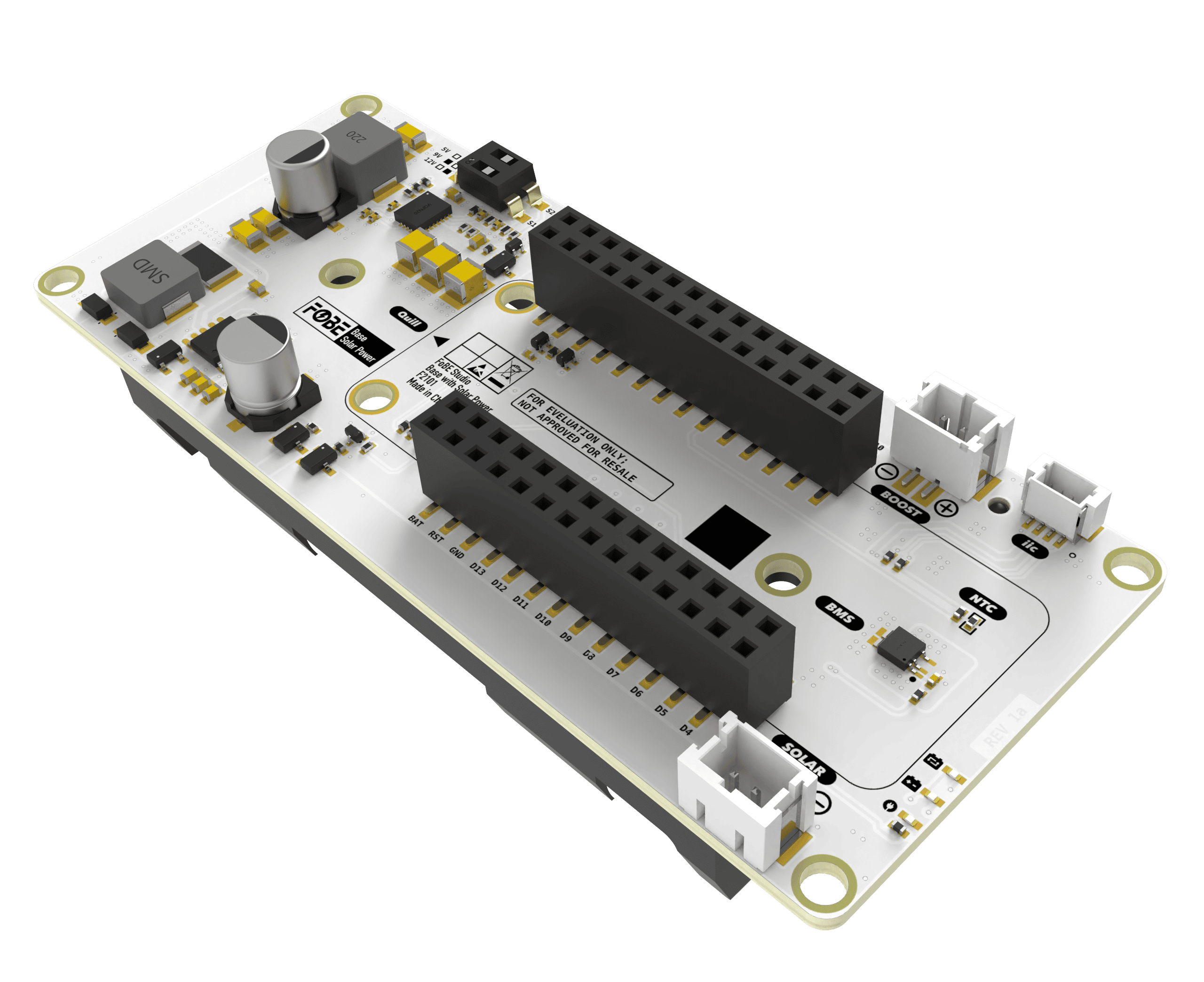

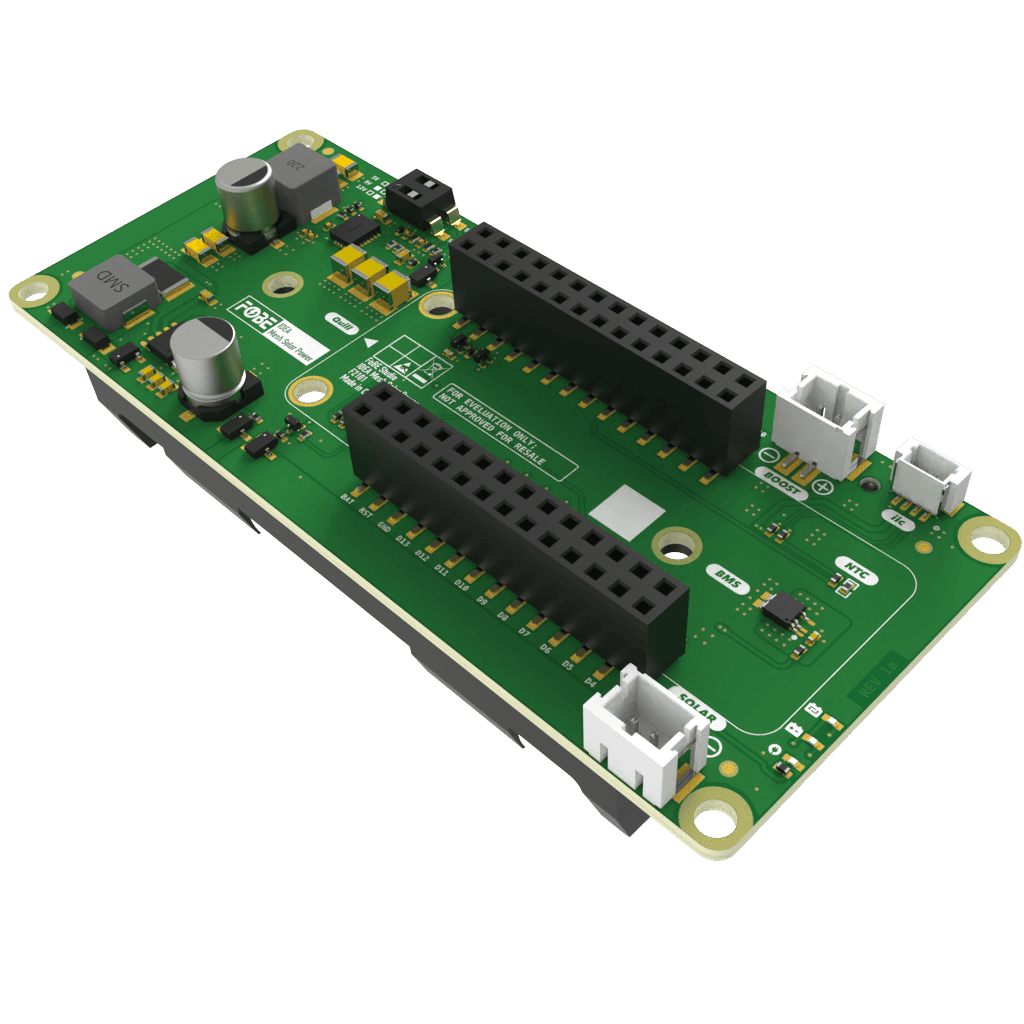

FoBE Mesh Solar Power Main


Introduction​

FoBE IDEA Mesh Solar Power is a versatile solar expansion board designed to enhance the capabilities of QUILL series devices. It offers a convenient and efficient solution for solar power integration, battery management, and an adjustable low-power DC-DC boost converter.

This expansion board features dual 18650 battery holders, a solar charging interface, an adjustable voltage boost output, and an IIC interface, making it ideal for a wide range of applications, including portable devices, remote sensors, and off-grid power systems.

Key Features​

  • Power Management:

    • Dual 18650 battery holders for extended battery life
    • Solar charging interface (2pin PH2.0) for sustainable power
    • Adjustable voltage boost output interface (2pin PH2.0) for flexible power supply
    • Battery protection chip for safe operation

  • Expansion and Connectivity:

    • Two rows of double 14-pin female sockets not only meet the operational requirements of the QUILL series, but also have additional free pins.
    • 4pin SH1.0 IIC interface for easy integration with sensors and peripherals

Packing List​

PartQuantity
FoBE Mesh Solar Power board1
