FoBE Studio Package for Arduino

This repository contains custom package_fobe_index.json files that can be used to add new third-party boards to the Arduino v1.6.4+ IDE through the Board Manager.

Quick Start

Step 1: Copy the Package Index URL

https://fobe-projects.github.io/arduino/package_fobe_index.json

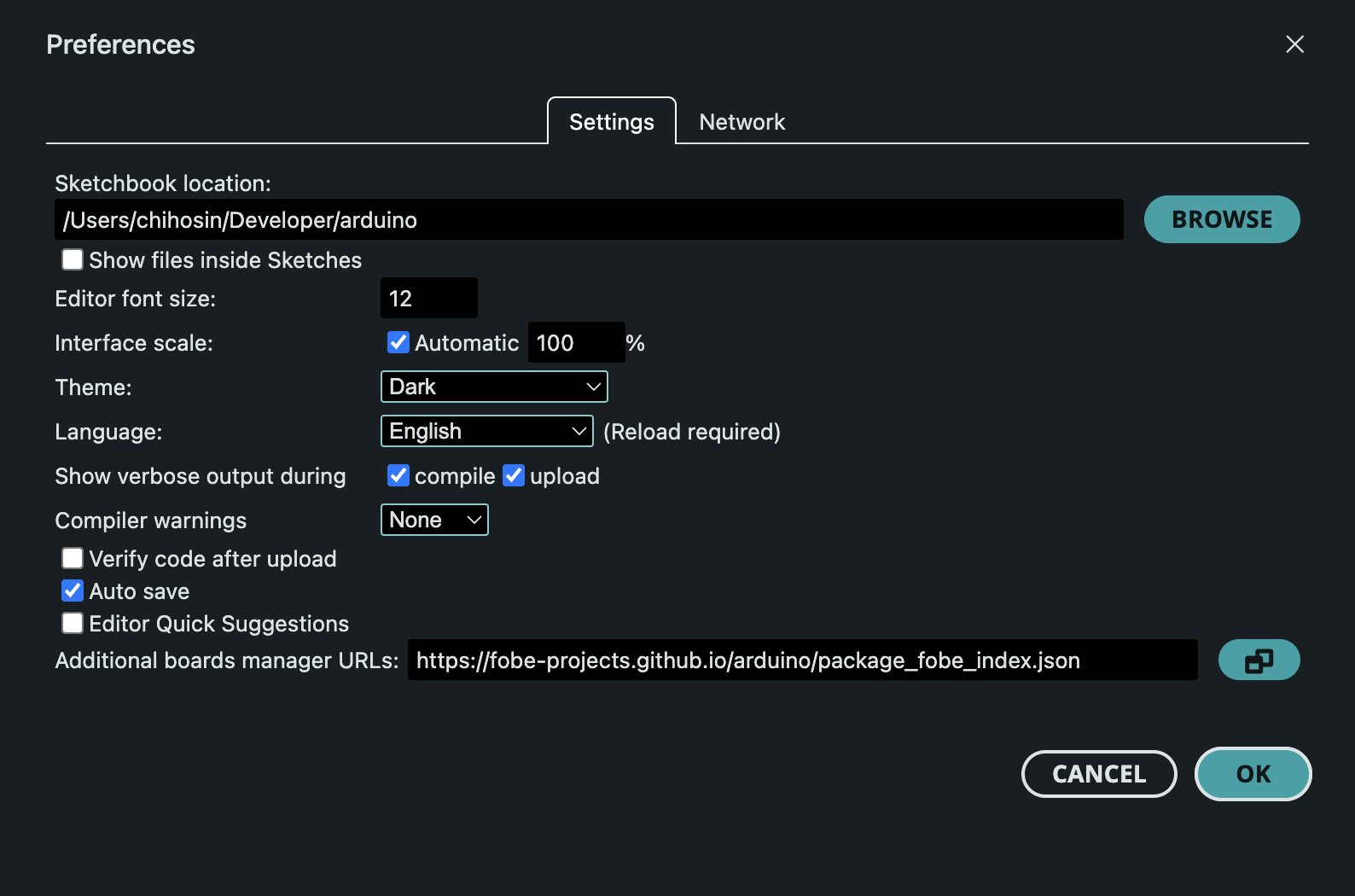

Step 2: Add to Arduino IDE

1. Open Arduino IDE
2. Go to File → Preferences
3. In the "Additional Boards Manager URLs" field, paste the URL above
4. If you already have other URLs, separate them with commas
5. Click OK

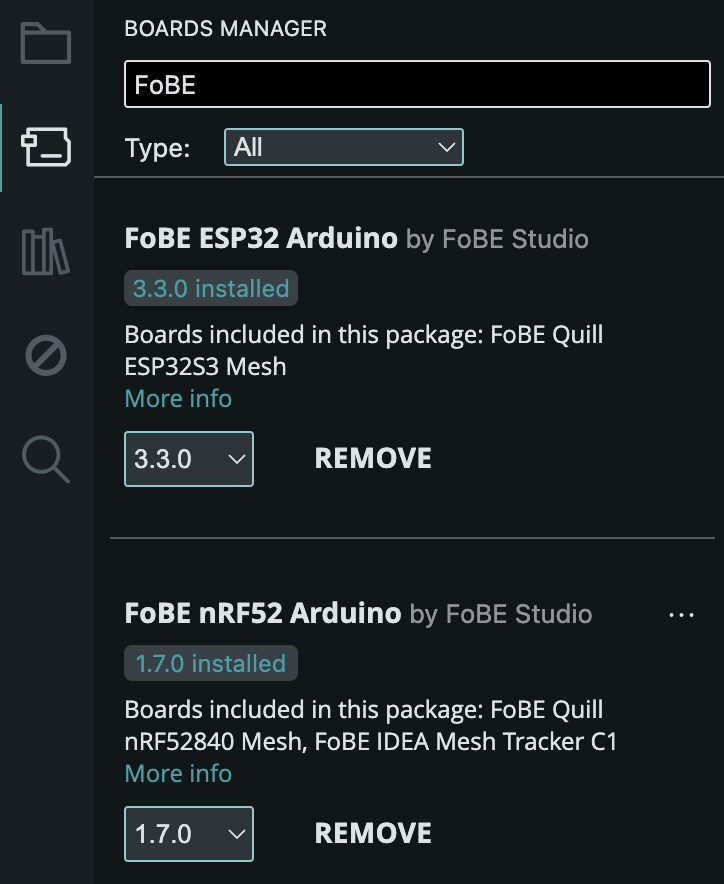

Step 3: Install Board Package

1. Go to Tools → Board → Boards Manager
2. Search for "FoBE" or the specific board you want
3. Click Install on the desired board package
4. Wait for the installation to complete

Requirements

• Arduino IDE version 1.6.4 or higher
• Internet connection for downloading board packages

Additional Resources

Official Arduino Documentation

• Arduino IDE Board Manager Guide
• Arduino Package Index Format

Third-Party Board Resources

• Unofficial list of 3rd party boards support URLs
• ESP32 Arduino Core
• ESP8266 Arduino Core

Contributing

If you have suggestions for improving this package index or want to report issues:

1. Open an issue nRF52 / ESP32
2. Fork the repository
3. Create a feature branch
4. Submit a pull request
