Getting Started with FoBE Breakout MFP-HUB

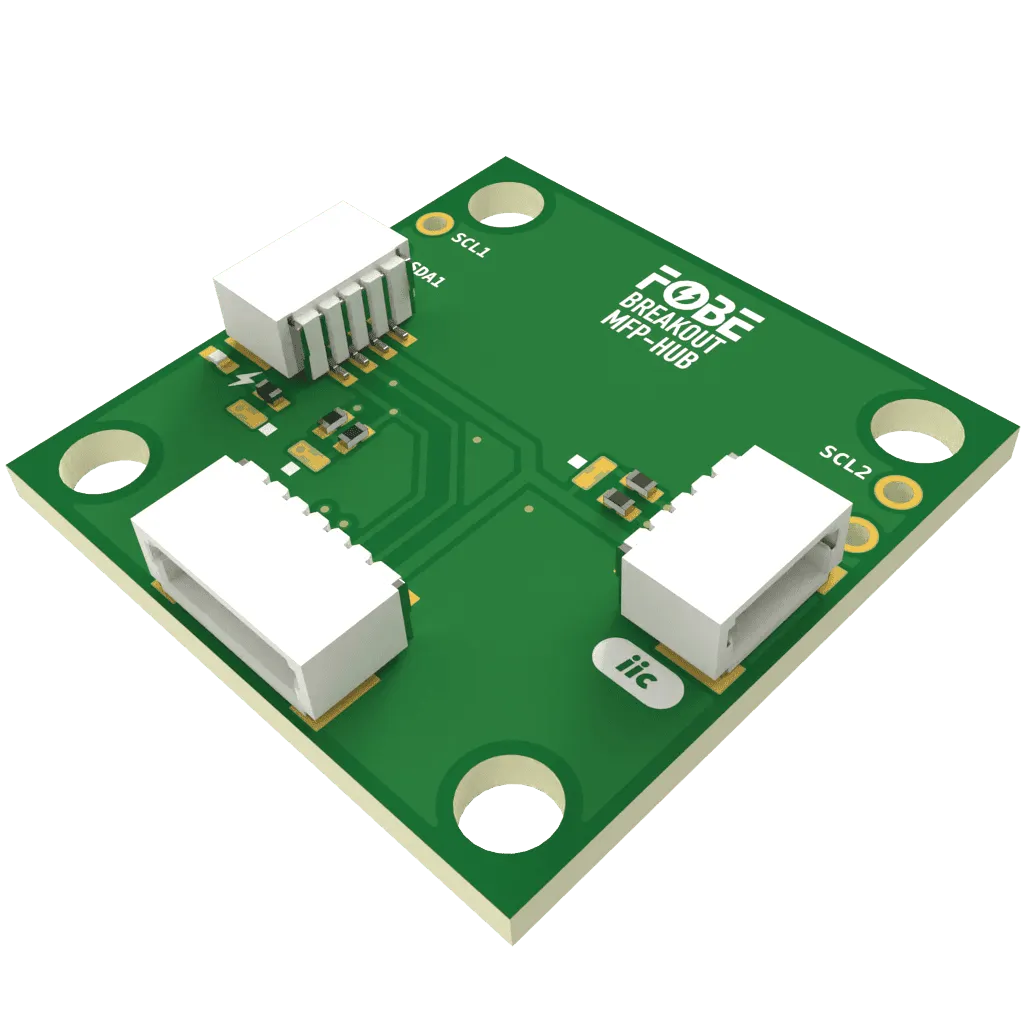

FoBE Breakout MFP-HUB Main

Introduction​

The FoBE Breakout MFP-HUB is an interface converter that splits a 6-pin MFP (Multi-Function Port) into two 4-pin I²C interfaces. This allows for connecting multiple I²C devices to a single MFP port, simplifying wiring and expanding connectivity options.

Key Features​

  • Interface Conversion: Converts one 6-pin MFP interface to two 4-pin I²C interfaces.
  • Flexible Connectivity: Provides one 6-pin JST SH1.0 connector for MFP input and two 4-pin JST SH1.0 connectors for I²C output.
  • On-board Pull-ups: Each I²C port is equipped with pull-up resistors, which can be individually disconnected via jumpers.
  • Power Indicator: An on-board power LED indicates the board's status, which can be disabled for low-power applications.

Hardware diagram​

The following figure illustrates the FoBE Breakout MFP-HUB hardware diagram.

FoBE Breakout MFP-HUB Hardware Diagram

Mechanical dimensions​

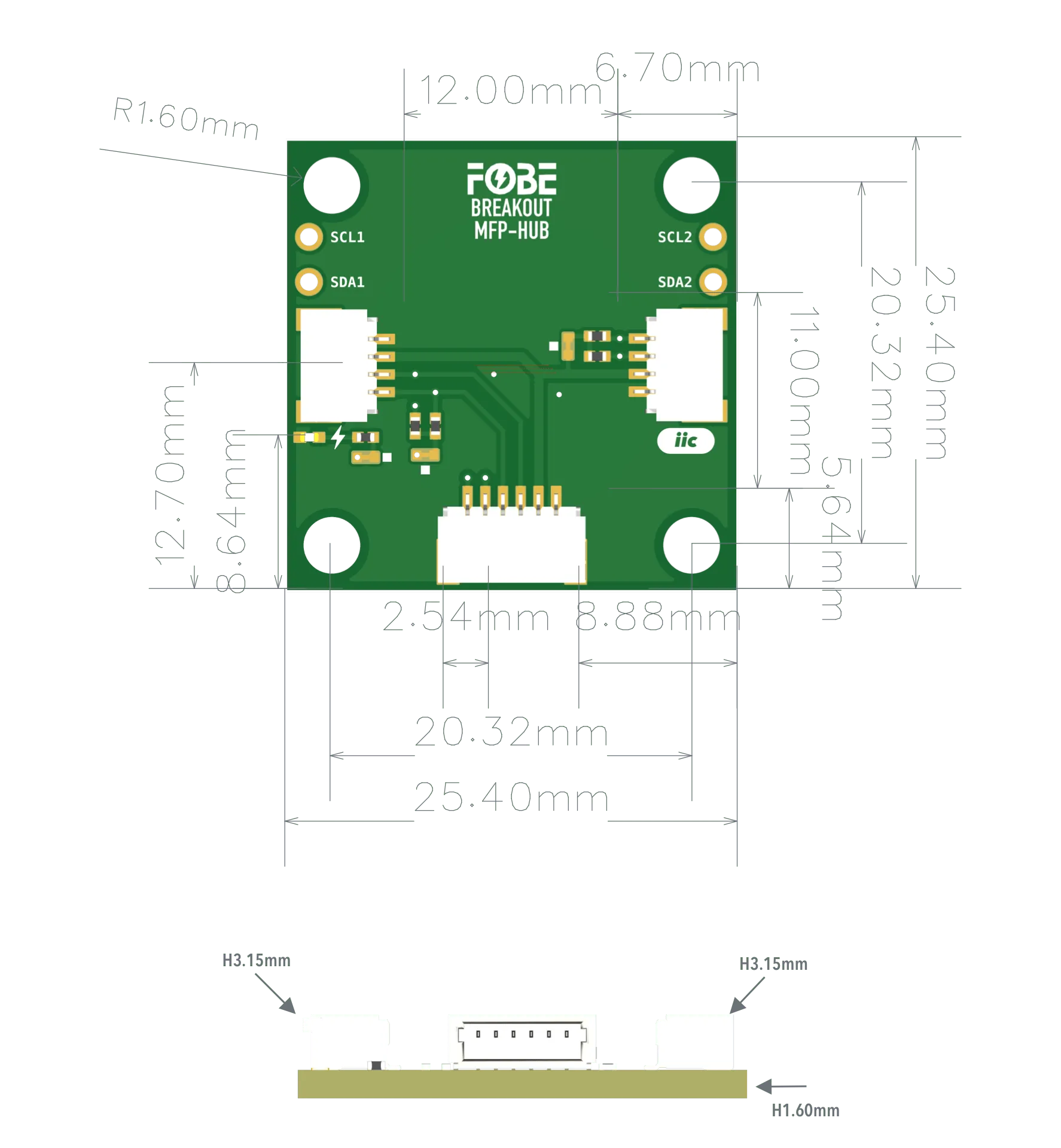

FoBE Breakout MFP-HUB is a single-sided 25.4mm x 25.4mm (1" x 1") 1.6mm thick PCB. Fixing by 4 x 1.6mm Screw holes.

FoBE Breakout MFP-HUB Mechanical Dimensions

Interfaces​

The module provides one 6-pin MFP connector and two 4-pin I²C connectors.

6-Pin MFP (J1)4-Pin IIC (J2, J3)Features
GNDGNDGround
3V33V3Power supply
SDA2SDA2I2C2-Data line
SCL2SCL2I2C2-Clock line
SDA1SDA1I2C1-Data line
SCL1SCL1I2C1-Clock line

Advanced​

Jumper​

The module features three jumper pads:

InterfaceDescription
LED-JUMPERDisconnect this jumper to turn off the power LED for further power saving.
IIC1 PULL-UPDisconnect this jumper to disable the pull-up resistors for the I²C1 port.
IIC2 PULL-UPDisconnect this jumper to disable the pull-up resistors for the I²C2 port.

Usage Example​

Connection with FoBE Quill and I²C Devices​

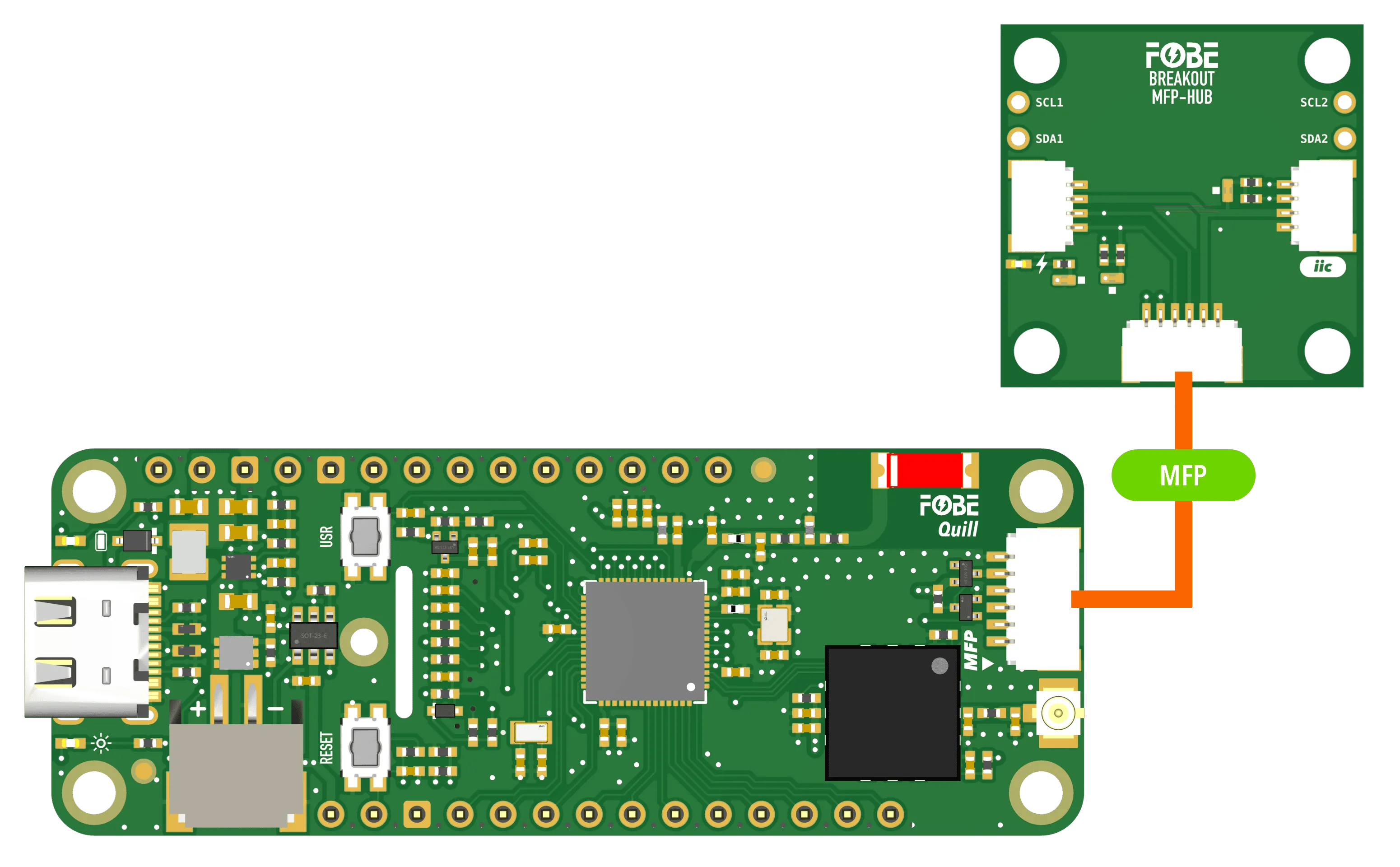

Connect the FoBE Breakout MFP-HUB to a FoBE Quill board using the MFP cable, and connect two I²C devices to the I²C ports.

FoBE Breakout MFP-HUB Connection

## Resources

**[PDF]** [FoBE Breakout MFP-HUB Datasheet](/assets/files/f2212/f2212.prj.datasheet.r1a.pdf)

**[PDF]** [FoBE Breakout MFP-HUB Schematic](/assets/files/f2212/f2212.prj.sch.r1a.pdf)

**[PDF]** [FoBE Breakout MFP-HUB Dimension](/assets/files/f2212/f2212.prj.dim.r1a.pdf)

**[OBJ]** [FoBE Breakout MFP-HUB 3D Model](/assets/files/f2212/f2212.prj.model.r1a.obj)
