Getting Started with FoBE Breakout L76K

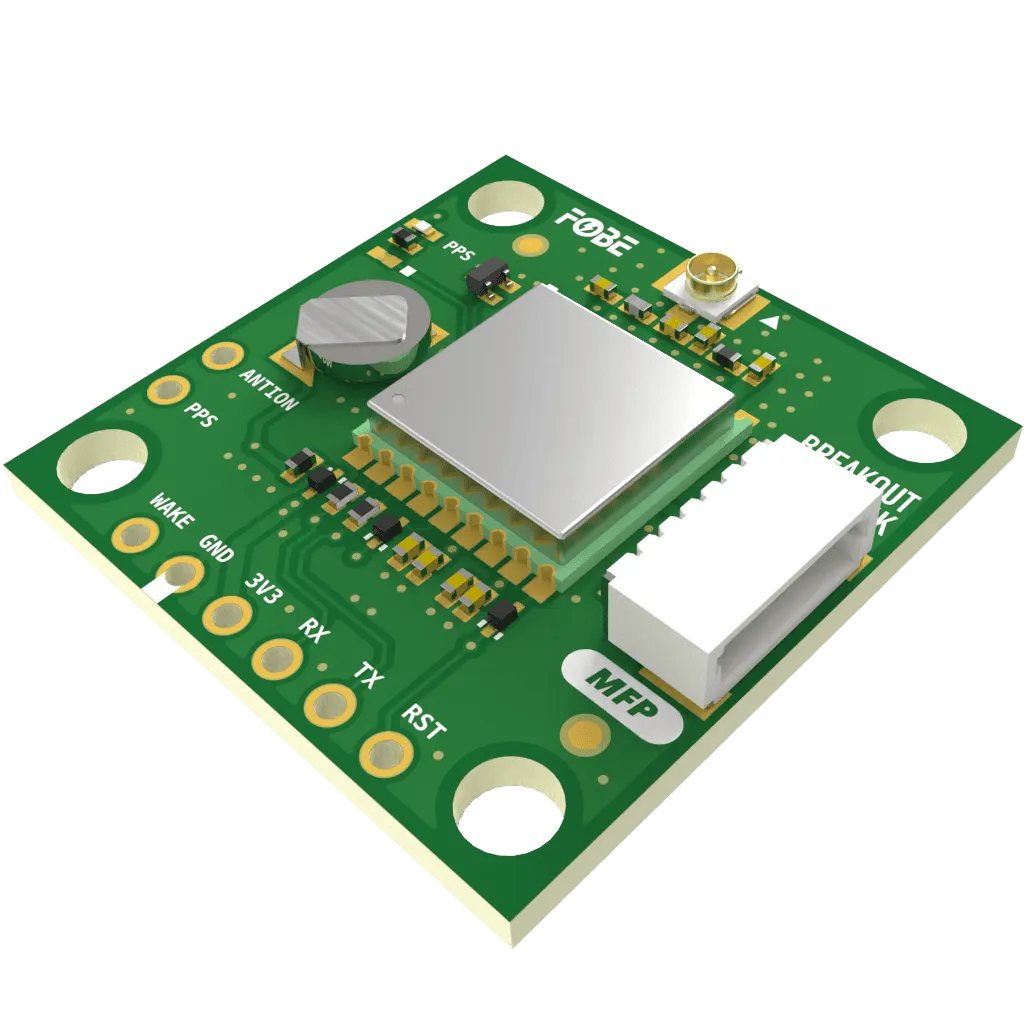

Introduction

The FoBE Breakout L76K integrates the Quectel L76K multi-constellation GNSS receiver, supporting GPS, BeiDou, GLONASS, Galileo, and QZSS satellite systems. The module provides fast and accurate positioning with AGNSS support, featuring both multi-system joint positioning and single system independent positioning capabilities. Multiple connectivity options are provided for easy integration into various applications.

Applications

Mobile applications requiring precise geolocation capabilities
Asset tracking and fleet management systems
Navigation and positioning devices
IoT applications with location awareness
Geofencing and location-based services

Key Features

L76K GNSS Receiver
- Multi-constellation support: GPS, BeiDou, GLONASS, Galileo, QZSS
- Multi-system joint positioning and single system positioning modes
- AGNSS (Assisted GNSS) function for faster positioning
- High-performance positioning with excellent accuracy
- Low power consumption with standby mode support
- Fast Time-To-First-Fix (TTFF) performance
- Built-in jamming detection and mitigation
- Wide operating temperature range
Power Management
- Built-in 3.1V rechargeable button cell battery for RTC
- Power supply: 3.3V via connector
- Low-power standby mode with wake functionality
- Reset functionality for system recovery
Antenna Support
- Onboard U.FL antenna connector
- Support for passive and active antennas
- Optional active antenna power supply
Connectivity
- MFP (JST-SH1.0 6-Pin) Interface
  - Power supply (3.3V)
  - UART interface for data communication
  - Wake and reset control pins
- 6-Pin 2.54mm Header Holes

Hardware diagram

The following figure illustrates the FoBE Breakout L76K hardware diagram.

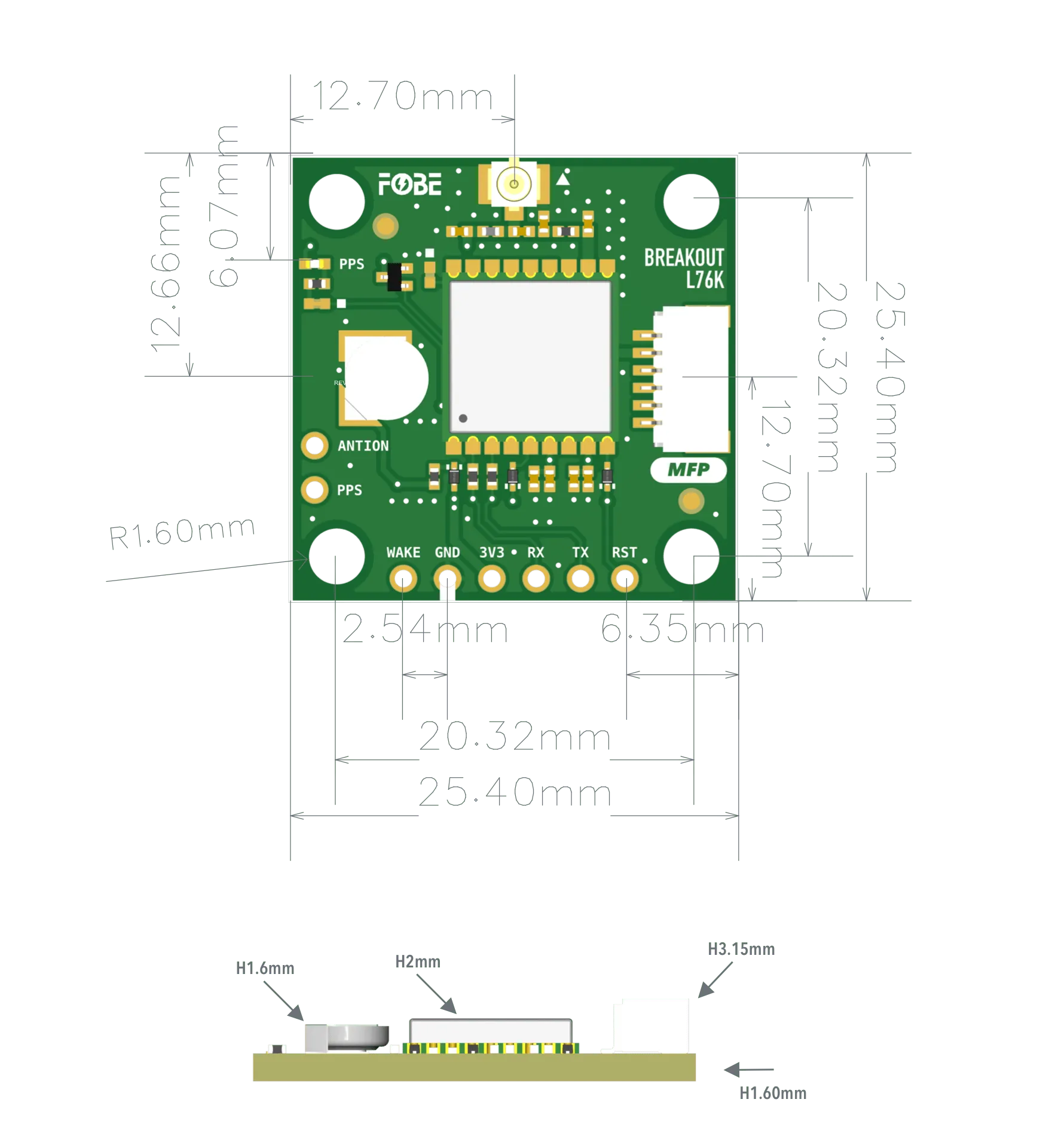

Mechanical dimensions

FoBE Breakout L76K is a single-sided 25.4mm x 25.4mm (1" x 1") 1.6mm thick PCB with a SH1.0 6-pin connector and a set of 6-pin 2.54mm header holes. Fixing by 4 x 1.6mm Screw holes.

Interfaces

The module provides a 6-Pin JST SH1.0 connector and corresponding 2.54mm header holes.

2.54mm 6-Pin	JST-SH1.0	Features
3V3	3V3	Power supply, Only 3.3V
GND	GND	Ground
TX	TX	UART data output
RX	RX	UART command input
RST	RST	Reset IC, Active Low
WAKE	WAKE	Standby mode control, Active Low

Advanced

Jumper

The module features two jumper pads:

Interface	Description
CONSTELLATION	Satellite constellation selector:Soldered: GPS + GLONASSOpen: BeiDou + GPS (Default)
LED-JUMPER	Disconnect this jumper to turn off the PPS LED for further power saving

Additional Features

Built-in Battery: 3.1V rechargeable button cell for data retention
Active Antenna Support: Connect "ACTIVE-ANT PWR" pad to 3V3 when using active antenna
PPS Output: Pulse-per-second signal output, independent of LED jumper control

Programming

Running with FoBE Quill ESP32S3 Mesh

Let's get started with the FoBE Quill ESP32S3 Mesh using the MFP interface.

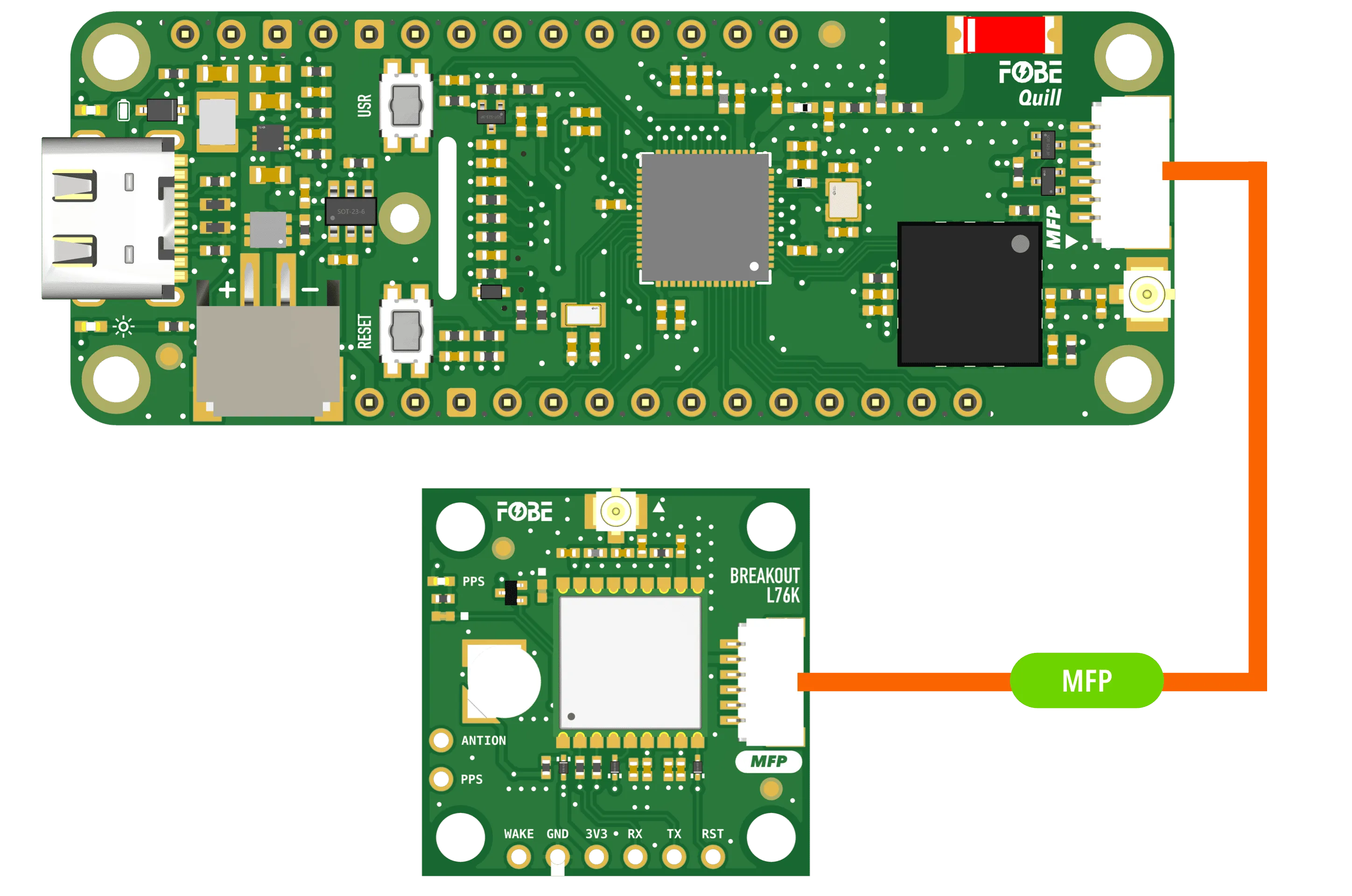

Connect the FoBE Breakout L76K to the FoBE Quill ESP32S3 Mesh using the MFP interface.

Create a sketch or PlatformIO project, or follow the FoBE Quill ESP32S3 Programming Guide for pre-configuration.
Install the necessary library in your project:

mikalhart/TinyGPSPlus@^1.1.0

Copy the following code into your sketch or PlatformIO project:

#include <TinyGPSPlus.h>
#include <SoftwareSerial.h>

#define GNSS_BAUD 9600          // GNSS module baud rate
#define GNSS_RX_PIN PIN_MFP1    // RX pin for GNSS communication, change if needed
#define GNSS_TX_PIN PIN_MFP2    // TX pin for GNSS communication, change if needed
#define GNSS_RST_PIN PIN_MFP3   // Reset pin for GNSS, change if needed
#define GNSS_WAKE_PIN PIN_MFP4  // Wake pin for GNSS, change if needed
#define PERI_EN_PIN PIN_PERI_EN // Peripheral enable pin, change if needed

TinyGPSPlus gnss;

// Buffer to store the latest NMEA sentence
String latestNmeaSentence = "";
char nmeaBuffer[128];
int bufferIndex = 0;

// Time tracking variables
unsigned long startupTime = 0;
unsigned long firstFixTime = 0;
bool firstFixAchieved = false;

void setup()
{
  // Initialize serial communication
  Serial.begin(115200);
  Serial.println("Serial initialized");

  // Initialize peripheral power
  if (PERI_EN_PIN >= 0)
  {
    pinMode(PERI_EN_PIN, OUTPUT);
    digitalWrite(PERI_EN_PIN, HIGH); // Enable peripheral power
    Serial.println("Peripheral power enabled");
  }

  // Initialize GNSS module (optional, if you want to test searching time cost)
  pinMode(GNSS_RST_PIN, OUTPUT);
  pinMode(GNSS_WAKE_PIN, OUTPUT);
  digitalWrite(GNSS_RST_PIN, LOW); // Reset the GNSS module
  delay(100);
  digitalWrite(GNSS_RST_PIN, HIGH);  // Release reset
  digitalWrite(GNSS_WAKE_PIN, HIGH); // Wake the GNSS module

  Serial1.begin(GNSS_BAUD, SERIAL_8N1, GNSS_RX_PIN, GNSS_TX_PIN);
  Serial.println("GNSS bus initialized");

  // Wait a moment for module to fully initialize
  delay(200);

  // Record startup time
  startupTime = millis();
  Serial.printf("Startup time recorded: %lu ms\n", startupTime);

  // Wait for GNSS to be ready (equivalent to sensor init loop)
  Serial.println("Waiting for GNSS data...");
  unsigned long startTime = millis();
  while (millis() - startTime < 10000) // Wait up to 10 seconds
  {
    while (Serial1.available() > 0)
    {
      gnss.encode(Serial1.read());
    }
    if (gnss.location.isValid() || gnss.time.isValid() || gnss.satellites.value() > 0)
    {
      break;
    }
    delay(200);
  }

  // Configure GNSS settings, calculate checksum reference https://www.hhhh.org/wiml/proj/nmeaxor.html
  Serial1.write("$PCAS04,7*1E\r\n"); // Configure satellite constellation
  delay(250);
  Serial1.write("$PCAS11,3*1E\r\n"); // Configure positioning mode
  delay(250);
  Serial1.write("$PCAS03,1,0,0,0,1,0,0,0,0,0,,,0,0*02\r\n"); // Configure positioning frequency
  delay(250);
  Serial1.write("$PCAS02,200*1D\r\n"); // Configure positioning frequency
  delay(250);

  Serial.println("GNSS sensor initialized");

  // Start measurement (GNSS automatically starts after initialization)
}

void loop()
{
  delay(50); // Wait equivalent to gnss.wait()

  // Read data from GNSS (equivalent to gnss.update())
  bool dataUpdated = false;
  while (Serial1.available() > 0)
  {
    char c = Serial1.read();

    // Build NMEA sentence buffer
    if (c == '$')
    {
      bufferIndex = 0;
      nmeaBuffer[bufferIndex++] = c;
    }
    else if (bufferIndex > 0 && bufferIndex < 127)
    {
      nmeaBuffer[bufferIndex++] = c;
      if (c == '\n')
      {
        nmeaBuffer[bufferIndex] = '\0';
        latestNmeaSentence = String(nmeaBuffer);
      }
    }

    if (gnss.encode(c))
    {
      dataUpdated = true;
    }
  }

  if (dataUpdated) // Equivalent to gnss.update() == RESULT_OK
  {
    if (gnss.location.isValid() || gnss.time.isValid()) // Equivalent to gnss.hasNewData()
    {
      // Check for first fix achievement
      if (!firstFixAchieved && gnss.location.isValid())
      {
        firstFixTime = millis();
        firstFixAchieved = true;
      }

      // Display data on screen
      Serial.print("\033[H\033[J");
      Serial.println("> FoBE Breakout L76K Monitor");
      Serial.println();
      Serial.print("\033[7m");
      Serial.printf("%-12s%-12s%-12s\n", "INDEX", "VALUE", "UNIT");
      Serial.print("\033[0m");

      if (gnss.location.isValid())
      {
        Serial.printf("%-12s%-12.6f%-12s\n", "LATITUDE", gnss.location.lat(), "°");
        Serial.printf("%-12s%-12.6f%-12s\n", "LONGITUDE", gnss.location.lng(), "°");
      }

      if (gnss.altitude.isValid())
      {
        Serial.printf("%-12s%-12.2f%-12s\n", "ALTITUDE", gnss.altitude.meters(), "m");
      }

      if (gnss.speed.isValid())
      {
        Serial.printf("%-12s%-12.2f%-12s\n", "SPEED", gnss.speed.kmph(), "km/h");
      }

      if (gnss.satellites.isValid())
      {
        Serial.printf("%-12s%-12d%-12s\n", "SATELLITES", gnss.satellites.value(), "");
      }

      if (gnss.hdop.isValid())
      {
        Serial.printf("%-12s%-12.2f%-12s\n", "HDOP", gnss.hdop.hdop(), "");
      }

      // Add GPS time display
      if (gnss.time.isValid() && gnss.date.isValid())
      {
        Serial.printf("%-12s%02d:%02d:%02d%-12s\n", "TIME", gnss.time.hour(), gnss.time.minute(), gnss.time.second(), "UTC");
        Serial.printf("%-12s%04d-%02d-%02d%-12s\n", "DATE", gnss.date.year(), gnss.date.month(), gnss.date.day(), "");
      }

      // Add Time to First Fix Information
      if (firstFixAchieved)
      {
        unsigned long timeToFirstFix = firstFixTime - startupTime;
        Serial.printf("%-12s%-12.3f%-12s\n", "TTFF", timeToFirstFix / 1000.0, "SEC");
      }
      else
      {
        unsigned long currentTime = millis();
        unsigned long timeElapsed = currentTime - startupTime;
        Serial.printf("%-12s%-12.3f%-12s\n", "SEARCHING", timeElapsed / 1000.0, "SEC");
      }

      // Print latest NMEA data stream below the table
      Serial.println();
      Serial.println("Latest NMEA Data Stream:");
      if (latestNmeaSentence.length() > 0)
      {
        Serial.print(latestNmeaSentence);
      }
      else
      {
        Serial.println("No NMEA data received yet");
      }
    }
  }
}

important

This example code uses ANSI output formatting. Your terminal must support ANSI escape codes to display the output correctly.

# platformio.ini
[env:fobe_quill_esp32s3_mesh]
platform = FoBE Espressif 32
board = fobe_quill_esp32s3_mesh
framework = arduino
lib_deps =
	mikalhart/TinyGPSPlus@^1.1.0
monitor_speed = 115200
monitor_raw = true

Build and upload the project. You should see the FoBE Breakout L76K Monitor output in the serial monitor (raw mode).

> FoBE Breakout L76K Monitor

INDEX       VALUE       UNIT
LATITUDE    22.123456   °
LONGITUDE   114.123456  °
ALTITUDE    71.20       m
SPEED       17.33       km/h
SATELLITES  15
HDOP        24.80
TIME        19:59:03UTC
DATE        2025-08-08
TTFF        3.236       SEC

Latest NMEA Data Stream:
$GNGSA,A,1,,,,,,,,,,,,,25.5,24.8,25.5,1*0D

Resources

[PDF] FoBE Breakout L76K Datasheet

[PDF] FoBE Breakout L76K Schematic

[PDF] FoBE Breakout L76K Dimension

[OBJ] FoBE Breakout L76K 3D Model
